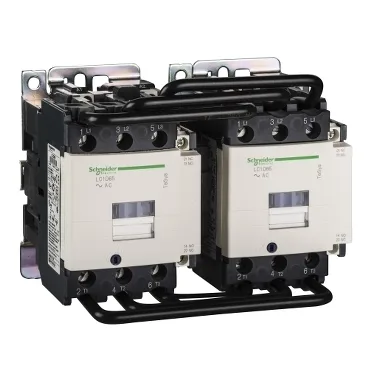

Schneider Electric LC2D65N7
MPNLC2D65N7
Obsolete
Reversing contactor, TeSys Deca, 3 poles, AC-3, <=440V 65A, 415V AC 50/60Hz coil, screw clamp terminals
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Reversing contactor |
| Series / range | TeSys |
| Application | Resistive load Motor control |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit 10 MOhm for signalling circuit |
| Utilisation category | AC-1 AC-3 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 front face IEC 60529 |
| Operating altitude | 0...3000 m |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Shocks contactor closed10 Gn for 11 ms Shocks contactor open8 Gn for 11 ms Vibrations contactor closed3 Gn, 5...300 Hz |
| Protective treatment / pollution degree | TH IEC 60068-2-30 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Flame retardance | V1 UL 94 |
| Parameter | Value |
|---|---|
| Width | 6.5 in (165 mm) |
| Height | 5 in (127 mm) |
| Depth | 5.6 in (142 mm) |
MPN
LC2D65N7
