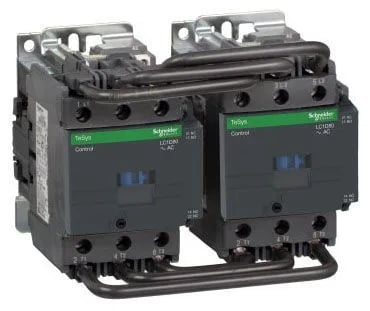

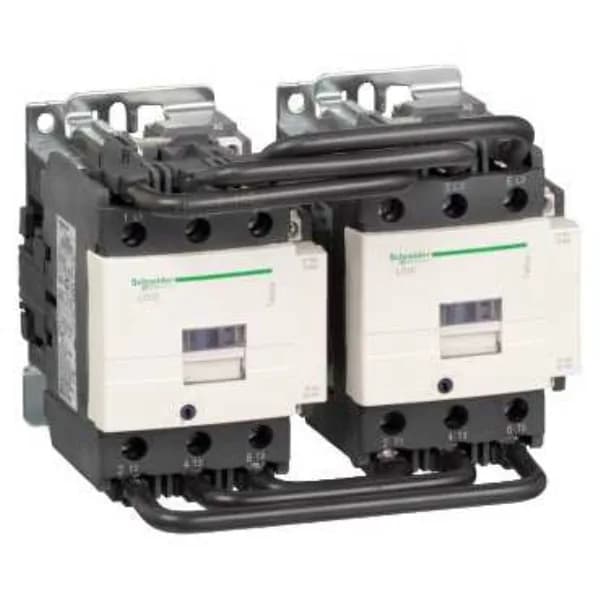

Schneider LC2D80F7 TeSys Deca reversing contactor, 80 A, 110 V AC coil

MPNLC2D80F7

Active

Schneider LC2D80F7 Electrical Contactors — now discontinued, supplied from remaining surplus and broker stock.

$304.80Ref. price · indicative, final on quote

Request quote

Schneider Electric LC2D80F7 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LC2D80F7 key specifications
Parameter	Value
Product or component type	Reversing contactor
Climatic withstand	IACS E10
[Ue] rated operational voltage	Power circuit Power circuit 10 MOhm for signalling circuit
Power pole contact composition	3 NO
Poles description	3P
Utilisation category	AC-1 AC-3 AC-3e AC-4
IP degree of protection	IP20 front face IEC 60529
Pollution degree	3
Operating altitude	0...9842.52 ft (0...3000 m)
Depth	6.2 in (158 mm)
Width	7.2 in (182 mm)
Height	5 in (127 mm)

All specifications

LC2D80F7 additional specifications
Parameter	Value
Range	TeSys
Category	US10I1222359
Fire resistance	1562 °F (850 °C) IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Device short name	LC2D
Device presentation	Preassembled with reversing power busbar
Protective treatment	TH IEC 60068-2-30
Contactor application	Motor control Resistive load
Mechanical robustness	Vibrations contactor open2 Gn, 5...300 Hz Shocks contactor open8 Gn for 11 ms Vibrations contactor closed3 Gn, 5...300 Hz Shocks contactor closed10 Gn for 11 ms
Ambient air temperature for storage	-76...176 °F (-60...80 °C)
Ambient air temperature for operation	-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC2D80F7 is a Schneider TeSys Deca reversing contactor rated 80 A in AC-3 duty and 110 A in AC-1, with a 110 V AC coil and a built-in 1NO-1NC auxiliary contact block. It is preassembled with the reversing power busbar, saving panel wiring time, and carries IP20 finger-safe protection on an open-style frame.

Compared to the LC2D65AG7, the LC2D80F7 carries a higher AC-3 current rating (80 A vs 65 A) and a 110 V AC coil instead of 120 V AC at 60 Hz, so a panel wired for 120 V control and 65 A motor load would need coil voltage and ampacity recheck before substituting.
