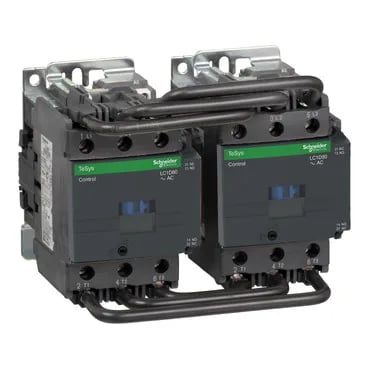

Schneider Electric LC2D80G7
MPNLC2D80G7
Active
REVERSING CONTACTOR 575VAC 80A IEC|REVERSING CONTACTOR 575VAC 80A IEC
$549.91 – $1,235.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Reversing contactor |
| Climatic withstand | IACS E10 |
| [Ue] rated operational voltage | Power circuit Power circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 |
| IP degree of protection | IP20 front face IEC 60529 |
| Pollution degree | 3 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 6.2 in (158 mm) |
| Width | 7.2 in (182 mm) |
| Height | 5 in (127 mm) |
All specifications
| Parameter | Value |
|---|---|
| Range | TeSys |
| Category | US10I1222359 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Device short name | LC2D |
| Device presentation | Preassembled with reversing power busbar |
| Protective treatment | TH IEC 60068-2-30 |
| Contactor application | Resistive load Motor control |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Shocks contactor open8 Gn for 11 ms Vibrations contactor closed3 Gn, 5...300 Hz Shocks contactor closed10 Gn for 11 ms |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
MPN
LC2D80G7
