Schneider Electric LC2D95G7
MPNLC2D95G7
Obsolete

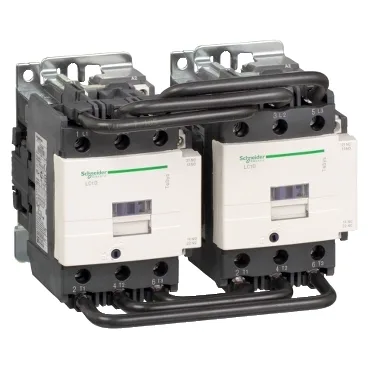

Reversing contactor, TeSys Deca,3P(3 NO) - AC-3, <=440V, 95A, 120V AC 60Hz coil
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Reversing contactor |
| Series / range | TeSys |
| Application | Resistive load Motor control |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: Power circuit: 10 MOhm for signalling circuit |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Operating altitude | 0...3000 m |
| Mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz Shocks contactor open: 8 Gn for 11 ms Vibrations contactor closed: 3 Gn, 5...300 Hz Shocks contactor closed: 10 Gn for 11 ms |
| Protective treatment / pollution degree | TH conforming to IEC 60068-2-30 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Parameter | Value |
|---|---|
| Width | 182 mm |
| Height | 127 mm |
| Depth | 158 mm |
MPN
LC2D95G7
