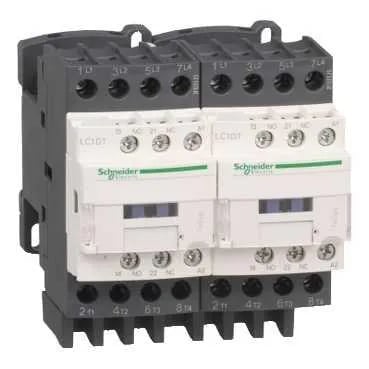

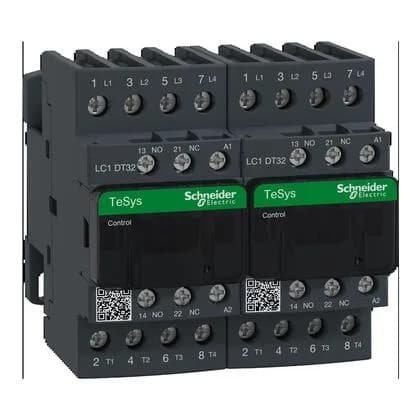

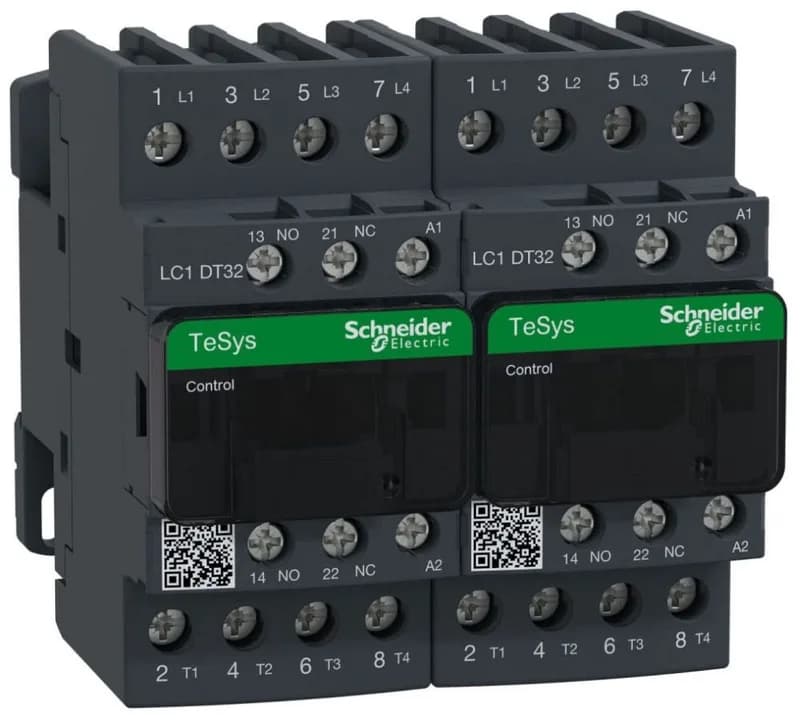

Schneider LC2DT32G7 TeSys Deca reversing contactor, 4-pole, 32 A AC-1

MPNLC2DT32G7

Obsolete

Schneider Electric TeSys Deca LC2DT32G7 reversing contactor, 4-pole (4 NO), AC-1 rated 32 A at ≤440 V, AC-3 rated 18 A, 120 V AC 50/60 Hz coil, 1NO-1NC auxiliary, IP20, IEC construction.

$166.37Ref. price · indicative, final on quote

Find equivalent or request quote

Schneider Electric LC2DT32G7 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LC2DT32G7 key specifications
Parameter	Value
Product or component type	Changeover contactor
Climatic withstand	IACS E10 IEC 60947-1 Annex Q category D
[Ue] rated operational voltage	Power circuit Power circuit 10 MOhm for signalling circuit
Power pole contact composition	4 NO
Poles description	4P
Utilisation category	AC-1 AC-3 AC-3e AC-4
IP degree of protection	IP20 front face IEC 60529
Pollution degree	3
Operating altitude	0...9842.52 ft (0...3000 m)
Depth	3.9 in (98 mm)
Width	3.5 in (90 mm)
Height	3.6 in (91 mm)

All specifications

LC2DT32G7 additional specifications
Parameter	Value
Range	TeSys TeSys Deca
Category	US10I1222354
Fire resistance	1562 °F (850 °C) IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Device short name	LC2D
Device presentation	Preassembled, with prewired power connections
Protective treatment	TH IEC 60068-2-30
Contactor application	Resistive load
Mechanical robustness	Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor closed15 Gn for 11 ms Shocks contactor open8 Gn for 11 ms
Ambient air temperature for storage	-76...176 °F (-60...80 °C)
Ambient air temperature for operation	-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC2DT32G7 is a Schneider TeSys Deca reversing contactor with four normally-open poles, switching 32 A in AC-1 resistive duty and 18 A in AC-3 inductive motor loads, pulled in by a 120 V AC coil. Built to IEC 60947, it carries a 1NO-1NC auxiliary contact block and is rated IP20 with a V1 flammability housing per UL 94.

The LC2DT32G7 uses four poles (4 NO) and is rated 32 A AC-1 / 18 A AC-3, while the LC2DT25G7 uses three poles (3 NO) and is rated 25 A AC-1 / 12 A AC-3. Choose the LC2DT32G7 when the circuit requires a fourth pole or higher continuous current; the LC2DT25G7 fits three-pole designs with lighter loads.
