Schneider Electric LC2K06103L7 — Contactors

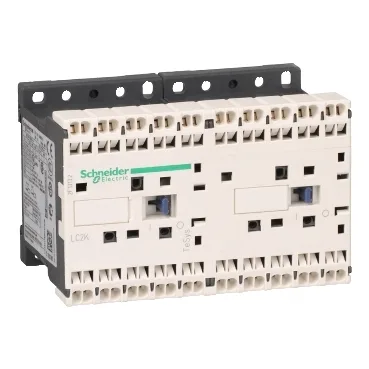

Schneider Electric LC2K06103L7 TeSys K Reversing Contactor,

MPNLC2K06103L7
Active

Schneider Electric TeSys K reversing contactor, 3P, AC-3 <=440 V 6 A, 1 NO, 200-208 VAC coil, 57 mm depth, 90 mm width, 58 mm height.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

LC2K06103L7 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationMotor control
LC2K06103L7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-3 AC-4
LC2K06103L7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC2K06103L7 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC2K06103L7 — Mechanical
ParameterValue
Width90 mm
Height58 mm
Depth57 mm

Product details

It carries three NO power poles and one NO auxiliary contact, with a 200-208 VAC coil.

The AC-3 rating at 6 A, 440 V is the motor-switching duty — starting and stopping a squirrel-cage induction motor under load. That current figure governs the real-world motor size this contactor can handle; a 6 A AC-3 rating typically corresponds to a 2.2 kW (3 HP) motor at 400 V three-phase. The 200-208 VAC coil is specific — not the more common 230 V or 240 V control voltage common in European panels. If the control transformer in the cabinet delivers 208 V phase-to-phase (common in North American 208Y/120 V systems), this coil is a direct fit. If the control voltage is 230 V or 240 V, the coil will overheat or fail to hold in, so the coil voltage must match the control circuit exactly.

Frequently asked questions

What are the key ratings for the LC2K06103L7?

It is a 3-pole reversing contactor rated AC-3 at 6 A, 440 V, with a 200-208 VAC coil. It carries one NO auxiliary contact and is preassembled with a reversing power busbar. Dimensions are 90 mm wide, 58 mm tall, 57 mm deep.

What compliance documentation is available for this part?

The part carries UL 94 V1 flame retardance rating and conforms to NF F 16-101/102 for railway fire behaviour. Protective treatment complies with IEC 60068 and DIN 50016. No RoHS or REACH statement is recorded in this listing.

MPN
LC2K06103L7
