Schneider Electric LC2K0610SC7 — Contactors

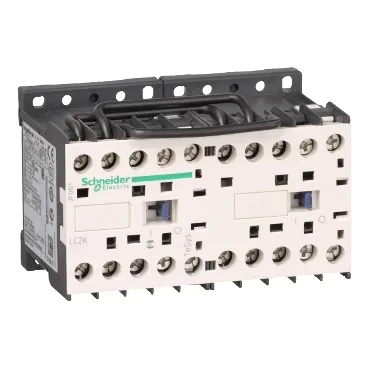

Schneider TeSys K LC2K0610SC7 Reversing Contactor, 3P, 6 A A

MPNLC2K0610SC7
Active

Schneider Electric TeSys K reversing contactor, LC2K0610SC7, 3P, AC-3 <=440V 6A, 1 NO auxiliary contact, 575 V AC coil, IP20.

Schneider Electric LC2K0610SC7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

LC2K0610SC7 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationMotor control
LC2K0610SC7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-4 AC-3
LC2K0610SC7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC2K0610SC7 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC2K0610SC7 — Mechanical
ParameterValue
Width90 mm
Height58 mm
Depth57 mm

Product details

It's rated AC-3 at 6 A up to 440 V and AC-4 for the same current, meaning it handles both normal motor starting and plugging/inching duty without derating. The coil is 575 V AC, which is common for North American 480/277 V panels where you want the control voltage pulled from the same phase as the motor power.

The single NO auxiliary contact (1 NO) is built in; if you need more feedback for the PLC or a status light, you add a side-mount aux block from the TeSys K range. The 575 V coil means you can pull control power from a 480/277 V system without a transformer, but verify the coil tolerance band — it's a 575 V nominal coil, so it holds in on a 480 V line but drops out cleanly on undervoltage.

Frequently asked questions

What is the closest alternative in the same family?

The non-reversing version (LC1K0610SC7) shares the same coil voltage, pole count, and aux contact arrangement, but lacks the factory-assembled reversing busbar. If you need reversing, the LC2K is the correct part; the LC1K would require an external mechanical interlock kit and additional wiring.

What compliance documentation is available?

The contactor carries V1 flame retardance per UL 94, and the protective treatment conforms to IEC 60068 and DIN 50016. The IP20 rating is per VDE 0106. For full RoHS/REACH declarations, refer to the Schneider product compliance sheet for the TeSys K series.

What is the depth of this contactor?

57 mm, which fits standard 4-inch deep enclosures without the cover interfering.

MPN
LC2K0610SC7
