Schneider Electric LC2K06103P7 — Contactors

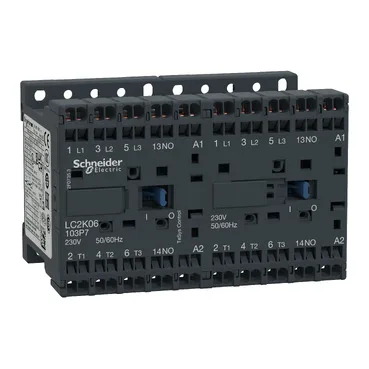

Schneider LC2K06103P7 TeSys K Reversing Contactor, 3P, 6A, 2

MPNLC2K06103P7
Obsolete

Schneider Electric TeSys K reversing contactor, LC2K06103P7, 3P, AC-3/AC-3e 440V 6A, 1NO, 230V AC coil, spring terminal.

Schneider Electric LC2K06103P7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LC2K06103P7 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationMotor control
LC2K06103P7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-3 AC-4 AC-3e
LC2K06103P7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC2K06103P7 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC2K06103P7 — Mechanical
ParameterValue
Width90 mm
Height58 mm
Depth57 mm

Product details

Part identity and ratings

Rated for AC-3, AC-4, and AC-3e utilisation categories, it switches 6 A at 440 V AC in motor duty. The 230 V AC coil is controlled via spring-cage terminals, with IP20 finger-protection per VDE 0106. Three power poles (3 NO) handle the motor circuit; a 1 NO auxiliary contact is integrated.

Sourcing is through independent surplus or broker channels. For a BOM line requiring this exact order code, the procurement path is a quoted-to-order RFQ — no standard factory lead time applies.

Integration notes

The reversing busbar is preassembled, reducing panel wiring time for forward/reverse motor starters. Operates between -25 °C and 50 °C ambient; store between -50 °C and 80 °C. Shock and vibration ratings per IEC 60068-2-27 and IEC 60068-2-6 support installation on machinery subject to moderate vibration.

Frequently asked questions

What are the key ratings for fit verification?

AC-3 motor switching at 6 A / 440 V, 230 V AC coil, 3 poles with 1 NO auxiliary. Spring terminals, 90 mm wide, 57 mm deep, IP20 protected.

How should I source this obsolete part?

Through an RFQ to a distributor sourcing from surplus or broker inventory. No standard factory lead time exists; confirm stock and pricing per your order quantity.

MPN
LC2K06103P7
