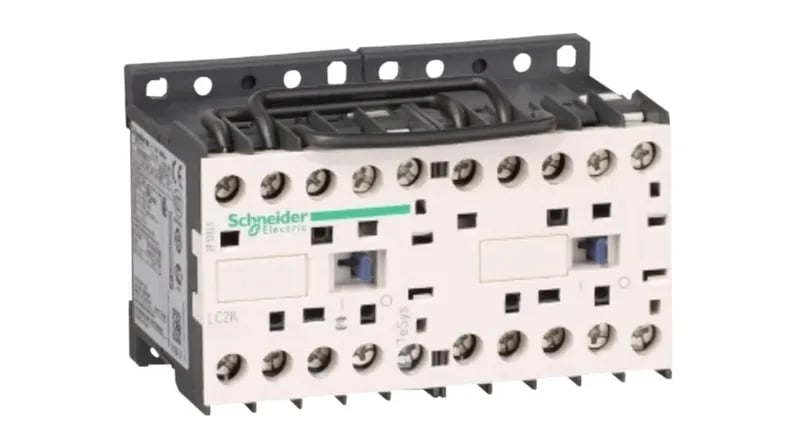

Schneider LC2K0910B7TQ TeSys K Reversing Contactor, 3 Pole, 20 A

MPNLC2K0910B7TQ
Obsolete

Schneider LC2K0910B7TQ Contactors — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

Schneider Electric LC2K0910B7TQ datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC2K0910B7TQ key specifications
ParameterValue
Coil typeAC 50/60 Hz
Range of productTeSys K
Interlocking typeMechanical
Control circuit typeAC
Product or component typeReversing contactor
Coil voltage24 V AC 50/60 Hz
Control circuit voltage limitsDrop-out: >= 0.20 Uc at 50/60 Hz (at Operational: 0.8...1.15 Uc at 50/60 Hz (at 10 MOhm for control circuit
[Ie] rated operational currentPower circuit 20 A AC AC-1 122 °F (50 °C)) Power circuit 9 A AC AC-3 Power circuit 9 A AC AC-3e
Motor power2.2 kW 220...230 V AC 50/60 Hz 4 kW 380...415 V AC 50/60 Hz 4 kW 440/500 V AC 50/60 Hz 4 kW 660/690 V AC 50/60 Hz
Maximum horse power rating2 hp 200/208 V AC 60 Hz CSA 2 hp 200/208 V AC 60 Hz UL 3 hp 230/240 V AC 60 Hz CSA 3 hp 230/240 V AC 60 Hz UL 5 hp 460/480 V AC 60 Hz CSA 5 hp 460/480 V AC 60 Hz UL 5 hp 575/600 V AC 60 Hz CSA 5 hp 575/600 V AC 60 Hz UL
Poles description3P
Pole contact composition3 NO

All specifications

LC2K0910B7TQ additional specifications
ParameterValue
Utilisation categoryAC-3 AC-1 AC-3e
IP degree of protectionIP2X VDE 0106
Connections - terminalsPower circuit screw clamp terminal 1 x 0.002 in² (1.5 mm²)solid Power circuit screw clamp terminal 2 x 0.006 in² (4 mm²)solid Power circuit screw clamp terminal 1 x 0.001 in² (0.75 mm²)flexible without cable end Power circuit screw clamp terminal 2 x 0.006 in² (4 mm²)flexible without cable end Power circuit screw clamp terminal 1 x 0.0005 in² (0.34 mm²)flexible with cable end Power circuit screw clamp terminal 1 x 0.002 in² (1.5 mm²)flexible with cable end Power circuit screw clamp terminal 1 x 0.004 in² (2.5 mm²)flexible with cable end Control circuit screw clamp terminal 1 x 0.002 in² (1.5 mm²)solid Control circuit screw clamp terminal 2 x 0.006 in² (4 mm²)solid Control circuit screw clamp terminal 1 x 0.001 in² (0.75 mm²)flexible without cable end Control circuit screw clamp terminal 2 x 0.006 in² (4 mm²)flexible without cable end Control circuit screw clamp terminal 1 x 0.0005 in² (0.34 mm²)flexible with cable end Control circuit screw clamp terminal 1 x 0.002 in² (1.5 mm²)flexible with cable end Control circuit screw clamp terminal 1 x 0.004 in² (2.5 mm²)flexible with cable end Power circuit spring terminal 1 x 0.001 in² (0.75 mm²)solid Power circuit spring terminal 1 x 0.002 in² (1.5 mm²)solid Power circuit spring terminal 1 x 0.001 in² (0.75 mm²)flexible without cable end Power circuit spring terminal 1 x 0.002 in² (1.5 mm²)flexible without cable end Control circuit spring terminal 1 x 0.001 in² (0.75 mm²)solid Control circuit spring terminal 1 x 0.002 in² (1.5 mm²)solid Control circuit spring terminal 1 x 0.001 in² (0.75 mm²)flexible without cable end Control circuit spring terminal 1 x 0.002 in² (1.5 mm²)flexible without cable end Power circuit Faston connectors 2 x clip 0.1 in (2.8 mm) Power circuit Faston connectors 1 x clip 0.25 in (6.35 mm) Control circuit Faston connectors 2 x clip 0.1 in (2.8 mm) Control circuit Faston connectors 1 x clip 0.25 in (6.35 mm)
Shock resistance10 gn contactor closed 6 gn contactor opened
Operating altitude6561.68 ft (2000 m) without derating
Vibration resistance2 gn 5...300 Hz contactor opened 4 gn 5...300 Hz contactor closed
Depth2.2 in (57 mm)
Width3.5 in (90 mm)
Height2.3 in (58 mm)
StandardsEN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1
Category22327-CTR,K-LINE,AC,OPEN,REV
Assembly styleReady assembled
Coil technologyWithout built-in bidirectional peak limiting diode suppressor
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Heat dissipation1.3 W at 50/60 Hz for control circuit
Quantity per setSet of 10
Device short nameLC2K
Protective treatmentTCIEC 60068
Contactor applicationResistive load Motor control
Auxiliary contact composition1 NO
Ambient air temperature for storage-58...176 °F (-50...80 °C)
Ambient air temperature for operation-13...122 °F (-25...50 °C)

Product details

Overview

The LC2K0910B7TQ is a Schneider TeSys K reversing contactor, order code LC2K0910B7TQ, built as a mechanically interlocked pair of 3-pole contactors rated for 20 A switching current and a 24 V AC 50/60 Hz coil. It handles motor loads up to 5 hp at 690 V supply and carries certifications including UL, CSA, CCC, EAC, CE, and UKCA, making it suitable for global panel builds.

This reversing contactor integrates two 3-pole contactors with a mechanical interlock that prevents simultaneous closure, a requirement for reversing motor starters where both contactors must never energise at the same time. The 24 V AC coil draws 1.3 W at 50/60 Hz and lacks a built-in bidirectional peak limiting diode suppressor, so external suppression is recommended for inductive load switching. Rated for utilization categories AC-1, AC-3, and AC-3e, the LC2K0910B7TQ is suited for resistive loads and standard squirrel-cage motor starting. The shock tolerance is 10 gn with the contactor closed and 6 gn when open, which informs mounting orientation and vibration isolation in mobile or high-impact installations.

Applications

Reversing contactors of this class are used wherever a motor must run in both directions — conveyor belts, hoists, winches, door operators, and pump reversing stations. The AC-3 rating covers starting and stopping of three-phase induction motors under load, while AC-1 covers resistive heating or lighting banks.

The LC2K0910B7TQ is an active, in-production part within Schneider's TeSys K range. It holds certifications under CB Scheme, CCC, UL, CSA, EAC, CE, and UKCA, and is manufactured to EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, and JIS C8201-4-1. No end-of-life notice is indicated.
