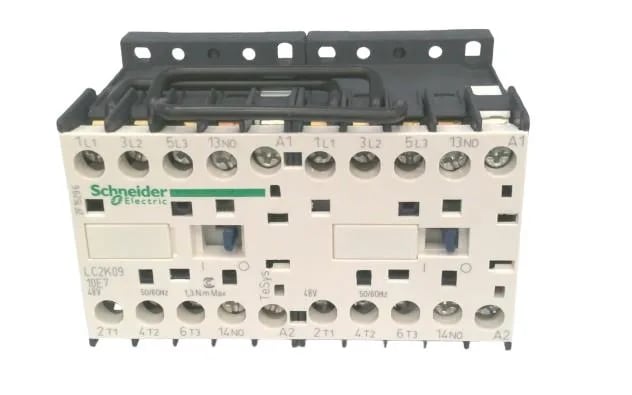

Schneider Electric LC2K0910E7

Square D LC2K0910E7 TeSys K Reversing Contactor, 9A AC-3

MPNLC2K0910E7
Active

TeSys K reversing contactor, 3P, 9A AC-3, 690V, preassembled with power busbar. Square D LC2K0910E7.

$36.83Ref. price · indicative, final on quote
Schneider Electric LC2K0910E7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC2K0910E7 key specifications
ParameterValue
Product or component typeReversing contactor
[Ue] rated operational voltagePower circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-3 AC-3e AC-4 AC-1
IP degree of protectionIP20 VDE 0106
Operating altitude6561.68 ft (2000 m) without derating
Depth2.2 in (57 mm)
Width3.5 in (90 mm)
Height2.3 in (58 mm)
RangeTeSys
CategoryUS10I1222327

All specifications

LC2K0910E7 additional specifications
ParameterValue
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
Device short nameLC2K
Device applicationControl
Device presentationPreassembled with reversing power busbar
Protective treatmentTC IEC 60068 TC DIN 50016
Contactor applicationMotor control Resistive load
Mechanical robustnessShocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Ambient air temperature for storage-58...176 °F (-50...80 °C)
Ambient air temperature for operation-13...122 °F (-25...50 °C)

Product details

Rated for AC-3 duty at 690 V, it ships preassembled with the reversing power busbar, saving panel wiring time.

This contactor takes a lickin' and keeps on clickin'. Rated for shocks up to 15 Gn on Y and Z axes with contactor closed, and vibration 4 Gn from 5–300 Hz. That's gear that survives a rough route.

Flame retardance meets V1 per UL 94, plus NF F 16-101/102 for rail applications. IP20 finger-safe terminals.

MPN
LC2K0910E7
