Schneider Electric LC2K0910M7

LC2K0910M7 TeSys K Reversing Contactor, 9A, 220-230VAC

MPNLC2K0910M7
Active

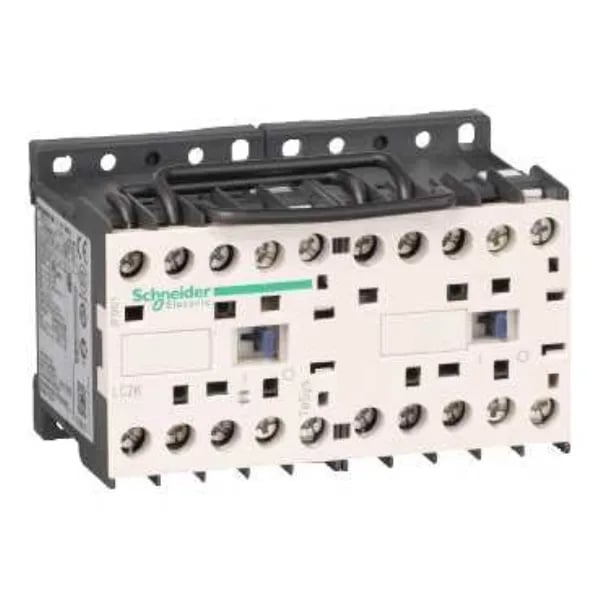

TeSys K reversing contactor, LC2K0910M7, 3P, AC-3 9A at 440V, 220-230VAC coil, preassembled with reversing power busbar.

$36.83Ref. price · indicative, final on quote
Schneider Electric LC2K0910M7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC2K0910M7 key specifications
ParameterValue
Product or component typeReversing contactor
[Ue] rated operational voltagePower circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-3 AC-3e AC-4 AC-1
IP degree of protectionIP20 VDE 0106
Operating altitude6561.68 ft (2000 m) without derating
Depth2.2 in (57 mm)
Width3.5 in (90 mm)
Height2.3 in (58 mm)
RangeTeSys
CategoryUS10I1222327

All specifications

LC2K0910M7 additional specifications
ParameterValue
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
Device short nameLC2K
Device applicationControl
Device presentationPreassembled with reversing power busbar
Protective treatmentTC IEC 60068 TC DIN 50016
Contactor applicationMotor control Resistive load
Mechanical robustnessShocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Ambient air temperature for storage-58...176 °F (-50...80 °C)
Ambient air temperature for operation-13...122 °F (-25...50 °C)

Product details

The LC2K0910M7 is a TeSys K reversing contactor rated for AC-3 motor switching up to 9 A at 440 V, with a 220–230 V AC coil and preassembled reversing power busbar. It comes as a 3-pole NO configuration, ready to install in a control panel for forward/reverse motor direction.

Dimensions are 3.5 in wide by 2.3 in high by 2.2 in deep (90 × 58 × 57 mm), fitting standard DIN-rail or panel-mount layouts. Operates from –25 to 50 °C ambient, with IP20 finger-safe protection and UL 94 V1 flame retardance on the housing.

Frequently asked questions

What is the depth of LC2K0910M7?

The depth is 2.2 in (57 mm).

What is the range of this contactor?

It belongs to the TeSys range, specifically the TeSys K series.
