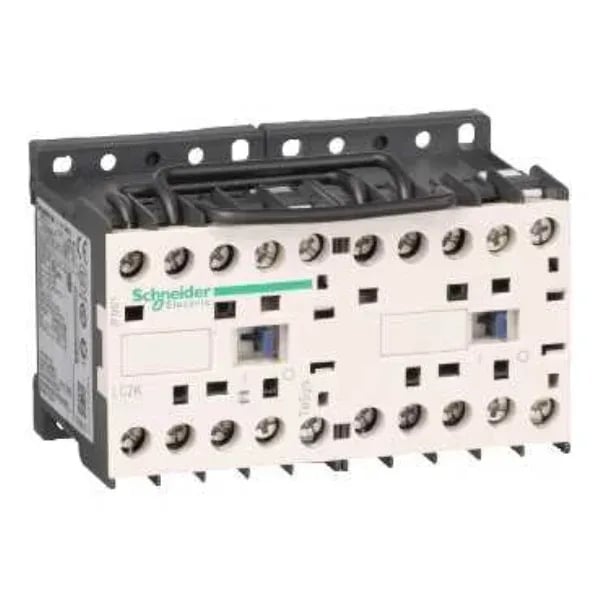

Schneider Electric LC2K0910U7

TeSys K LC2K0910U7 Reversing Contactor, 9A AC-3 575V

MPNLC2K0910U7
Active

Schneider Electric TeSys K reversing contactor, LC2K0910U7, 3P 9A AC-3 575V, preassembled with reversing power busbar, IP20.

$36.83Ref. price · indicative, final on quote
Schneider Electric LC2K0910U7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC2K0910U7 key specifications
ParameterValue
Product or component typeReversing contactor
[Ue] rated operational voltagePower circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-3 AC-3e AC-4 AC-1
IP degree of protectionIP20 VDE 0106
Operating altitude6561.68 ft (2000 m) without derating
Depth2.2 in (57 mm)
Width3.5 in (90 mm)
Height2.3 in (58 mm)
RangeTeSys
CategoryUS10I1222327

All specifications

LC2K0910U7 additional specifications
ParameterValue
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
Device short nameLC2K
Device applicationControl
Device presentationPreassembled with reversing power busbar
Protective treatmentTC IEC 60068 TC DIN 50016
Contactor applicationResistive load Motor control
Mechanical robustnessShocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Ambient air temperature for storage-58...176 °F (-50...80 °C)
Ambient air temperature for operation-13...122 °F (-25...50 °C)

Product details

Reversing contactor, preassembled

The LC2K0910U7 is a preassembled reversing contactor from the TeSys K range, with two 3-pole contactors mechanically interlocked and the reversing power busbar preinstalled.

AC-3 category covers motor starting and running loads; AC-4 and AC-1 are also listed.

Mechanical and installation notes

Dimensions are 90 mm wide by 58 mm high by 57 mm deep. IP20 finger-safe terminals. Flame retardance V1 per UL 94, and operation from -25°C to 50°C ambient without derating up to 2000 m altitude. Preassembled reversing busbar means one unit mounts on the rail; no separate cross-wiring for the reverse logic.
