It's a 3-pole device rated AC-3 at 12 A up to 440 V, with a 12 V DC coil. The utilisation categories span AC-1 (resistive), AC-3 (motor start/run), and AC-4 (plugging/inching), so it's specced for motor control and resistive loads. IP20 finger protection per VDE 0106 means it's safe for panel mounting behind a closed door. Flame retardance meets UL 94 V1 and NF F 16-101/102, which covers rail and transit applications.
Schneider TeSys K LC2K12015JDS335 Reversing Contactor, 12A A
MPNLC2K12015JDS335
Obsolete

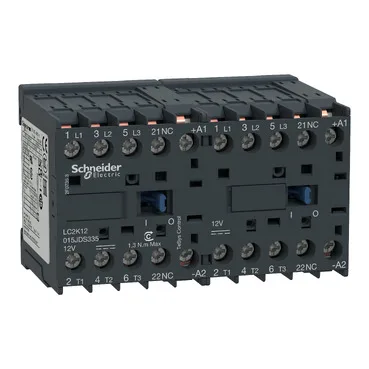

Schneider Electric TeSys K reversing contactor, LC2K12015JDS335, 3P, AC-3 12A at 440V, 12V DC coil, preassembled with reversing power busbar.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Reversing contactor |
| Series / range | TeSys |
| Application | Motor control Resistive load |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit |
| Utilisation category | AC-4 AC-3 AC-1 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to VDE 0106 |
| Operating altitude | 2000 m without derating |
| Mechanical robustness | Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Shocks contactor opened, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on X axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 |
| Protective treatment / pollution degree | TC conforming to IEC 60068 TC conforming to DIN 50016 |
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 58 mm |
| Depth | 57 mm |
Product details
Frequently asked questions
What are the key ratings for the LC2K12015JDS335?
It's a 3-pole reversing contactor rated AC-3 at 12 A up to 440 V, with a 12 V DC coil. It covers AC-1, AC-3, and AC-4 utilisation categories. The coil is 12 V DC, so verify your control voltage matches before wiring.
What compliance documentation exists for this part?
The part carries IP20 per VDE 0106, flame retardance V1 per UL 94, and meets NF F 16-101/102 for rail applications. Protective treatment is TC per IEC 60068 and DIN 50016. No RoHS or REACH statements are in this record, but as a Schneider TeSys product, those declarations are typically available through their documentation portal.
MPN
LC2K12015JDS335
