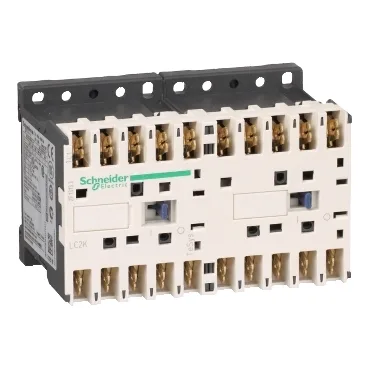

Schneider Electric LC2K16017Q7 — Contactors

TeSys K LC2K16017Q7 reversing contactor, 3P, 16 A AC-3, 380-

MPNLC2K16017Q7
Active

Schneider Electric TeSys K reversing contactor, 3P, AC-3 <=440 V 16 A, 1 NC, 380-400 V AC coil, preassembled with reversing power busbar.

Schneider Electric LC2K16017Q7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

LC2K16017Q7 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationMotor control
LC2K16017Q7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-3 AC-4
LC2K16017Q7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC2K16017Q7 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC2K16017Q7 — Mechanical
ParameterValue
Width90 mm
Height58 mm
Depth57 mm

Product details

The LC2K16017Q7 is a TeSys K reversing contactor from Schneider Electric, built as a 3-pole unit rated 16 A in AC-3 duty at up to 440 V, with a 380-400 V AC coil and one NC auxiliary contact. It comes preassembled with a reversing power busbar, so it's ready to wire into a motor-reversing circuit without piecing together interlocks and bus links. The AC-3 rating means it's designed for starting and stopping squirrel-cage motors under full load — the typical duty for a reversing starter on a conveyor, pump, or fan.

Physical integration

The preassembled reversing busbar saves panel space and wiring time compared to building the reversing interlock with separate contactors and external wiring.

Frequently asked questions

What replaces this reversing contactor?

No official successor order code is listed. For a new design, move to a current TeSys D or TeSys F reversing contactor with the same pole count, AC-3 current rating, and coil voltage.

What are the key ratings I need to check for fit?

AC-3 rating is 16 A at ≤440 V, coil is 380-400 V AC, 3 poles with one NC auxiliary. IP20, DIN rail mount, dimensions 57x90x58 mm.

Does it come with the reversing busbar?

Yes, it's preassembled with a reversing power busbar, so it's ready to wire into a reversing motor circuit without extra parts.

What compliance documentation is available?

Flame retardance meets UL 94 V1 and NF F 16-101/102. IP20 per VDE 0106. Shock and vibration per IEC 60068-2-27 and IEC 60068-2-6. Protective treatment per IEC 60068 and DIN 50016.

MPN
LC2K16017Q7
