Schneider Electric LC2K16107E72 — Contactors

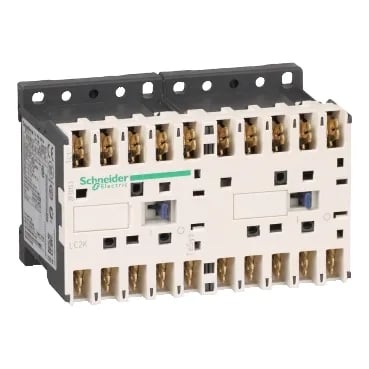

Schneider TeSys K LC2K16107E72 reversing contactor, 3P, 16 A

MPNLC2K16107E72
Active

Schneider Electric TeSys K reversing contactor, 3P, AC-3 ≤440 V 16 A, 1 NO, 48 V AC coil, preassembled with reversing power busbar.

StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

LC2K16107E72 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationMotor control

Ratings & Performance

LC2K16107E72 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-4 AC-3

Contacts & Poles

LC2K16107E72 — Contacts & Poles
ParameterValue
Pole configuration3P

Environmental

LC2K16107E72 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102

Mechanical

LC2K16107E72 — Mechanical
ParameterValue
Width90 mm
Height58 mm
Depth57 mm

Product details

It's a 3-pole unit rated for AC-3 motor switching at 16 A up to 440 V, with a 48 V AC coil. That AC-3 rating means it's designed to switch a motor on and off under load, including reversing, without welding the contacts shut on the inrush.

This reversing contactor is built for motor control panels — it handles the forward/reverse function for conveyors, pumps, fans, and similar three-phase motor loads. Dimensions are 90 mm wide by 58 mm high by 57 mm deep, which is a compact footprint for a reversing pair — fits on standard DIN rail without crowding the next device.

It also carries an AC-4 rating, which covers plugging and inching (reversing while the motor is still spinning), a tougher duty cycle. The 48 V AC coil is common in control circuits where a separate control transformer steps down from the line voltage.

Frequently asked questions

What are the key ratings for this reversing contactor?

It's a 3-pole reversing contactor rated AC-3 16 A at ≤440 V, with a 48 V AC coil. The power circuit is rated for 690 V AC 50/60 Hz. It's preassembled with a reversing power busbar.

What compliance documentation is available for this part?

The contactor carries IP20 protection per VDE 0106 and flame retardance rated V1 per UL 94, also conforming to NF F 16-101 and NF F 16-102. Protective treatment conforms to IEC 60068 and DIN 50016.
