Overview
The LC3D09AF7 is a TeSys D star-delta starter from Schneider, built with three 3 NO contact blocks rated 9 A and a 110 V AC coil, pre-wired for motor starting duty.

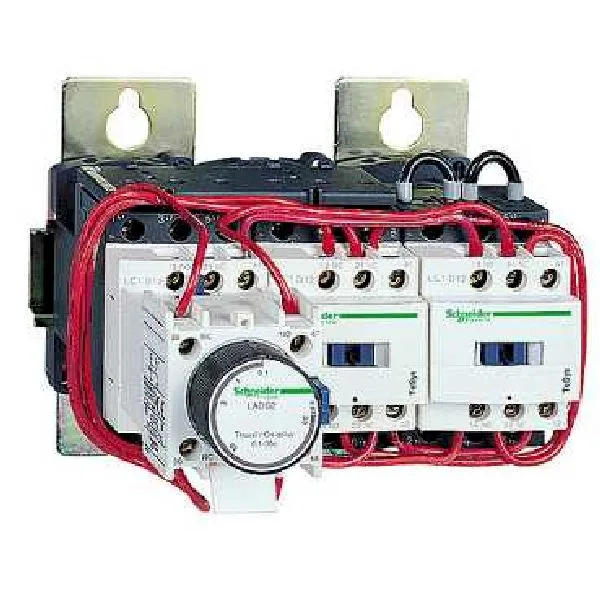

Schneider LC3D09AF7 TeSys D star-delta starter, 9 A, 110 V AC (discontinued)
MPNLC3D09AF7
Obsolete
Schneider Electric TeSys D LC3D09AF7 star-delta starter, 3 x 3 NO contacts, 9 A, 110 V AC coil, IP20 front face, pre-wired, IEC, discontinued.
$228.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Star delta starter |
| Climatic withstand | IACS E10 IEC 60947-1 Annex Q category D |
| [Ue] rated operational voltage | Power circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 x 3 NO |
| Poles description | 3 x 3P |
| Utilisation category | AC-3 |
| IP degree of protection | IP20 front face IEC 60529 |
| Pollution degree | 3 |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Range | TeSys |
| Category | US10I1222354 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
All specifications
| Parameter | Value |
|---|---|
| Flame retardance | V1 conforming to UL 94 |
| Device short name | LC3D |
| Device presentation | Pre-wired |
| Protective treatment | TH IEC 60068-2-30 |
| Contactor application | Motor control |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open10 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) at Uc |
Product details
MPN
LC3D09AF7
