Schneider Electric LC3D18AB7
MPNLC3D18AB7
Active

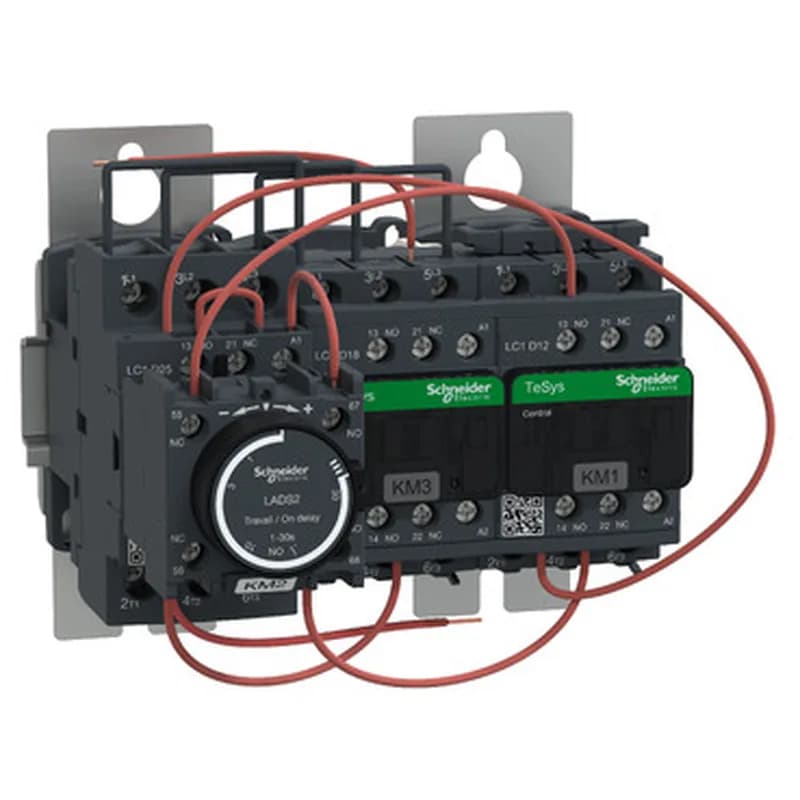

Star delta starter, TeSys Deca, 3x3P(3NO), 18A, 24V AC coil, screw clamp terminal
$369.21 – $781.37Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Star delta starter |
| Climatic withstand | conforming to IACS E10 conforming to IEC 60947-1 Annex Q category D |
| [Ue] rated operational voltage | Power circuit: 10 MOhm for signalling circuit |
| Power pole contact composition | 3 x 3 NO |
| Poles description | 3 x 3P |
| Utilisation category | AC-3 |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Pollution degree | 3 |
| Operating altitude | 3000 m without derating |
| Range | TeSys TeSys Deca |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
All specifications
| Parameter | Value |
|---|---|
| Device short name | LC3D |
| Device presentation | Pre-wired |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Contactor application | Motor control |
| Mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 4 Gn, 5...300 Hz Shocks contactor open: 10 Gn for 11 ms Shocks contactor closed: 15 Gn for 11 ms |
| Ambient air temperature for storage | -60...80 °C |
| Ambient air temperature for operation | -40...70 °C at Uc |
MPN
LC3D18AB7
