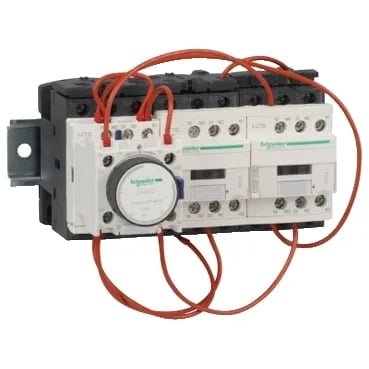

Schneider Electric LC3D18AM7
MPNLC3D18AM7
Obsolete
TeSys Deca, star delta starter, 3 x 3P (3 NO), 18 A, 220 V AC coil
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Star delta starter |
| Climatic withstand | IACS E10 IEC 60947-1 Annex Q category D |
| [Ue] rated operational voltage | Power circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 x 3 NO |
| Poles description | 3 x 3P |
| Utilisation category | AC-3 |
| IP degree of protection | IP20 front face IEC 60529 |
| Pollution degree | 3 |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Range | TeSys |
| Category | 22354-CTR,TESYS D,OPEN,9-38A AC |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
All specifications
| Parameter | Value |
|---|---|
| Flame retardance | V1 conforming to UL 94 |
| Device short name | LC3D |
| Device presentation | Pre-wired |
| Protective treatment | TH IEC 60068-2-30 |
| Contactor application | Motor control |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Vibrations contactor closed4 Gn, 5...300 Hz Shocks contactor open10 Gn for 11 ms Shocks contactor closed15 Gn for 11 ms |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) at Uc |
MPN
LC3D18AM7
