Schneider LC3D80F7A64 Contactor & Starter Accessories & Parts — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Product or component type | Star delta starter |
| [Ue] rated operational voltage | Power circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 x 3 NO |
| Poles description | 3 x 3P |
| Utilisation category | AC-3 |
| IP degree of protection | IP20 front face IEC 60529 |
| Pollution degree | 3 |
| Operating altitude | 9842.52 ft (3000 m) |
| Range | TeSys |
| Category | US1CP1018401 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Parameter | Value |
|---|---|
| Device short name | LC3D |
| Device presentation | Pre-wired |
| Protective treatment | TH IEC 60068-2-30 |
| Contactor application | Motor control |
| Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz Shocks contactor open8 Gn for 11 ms Vibrations contactor closed3 Gn, 5...300 Hz Shocks contactor closed10 Gn for 11 ms |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |

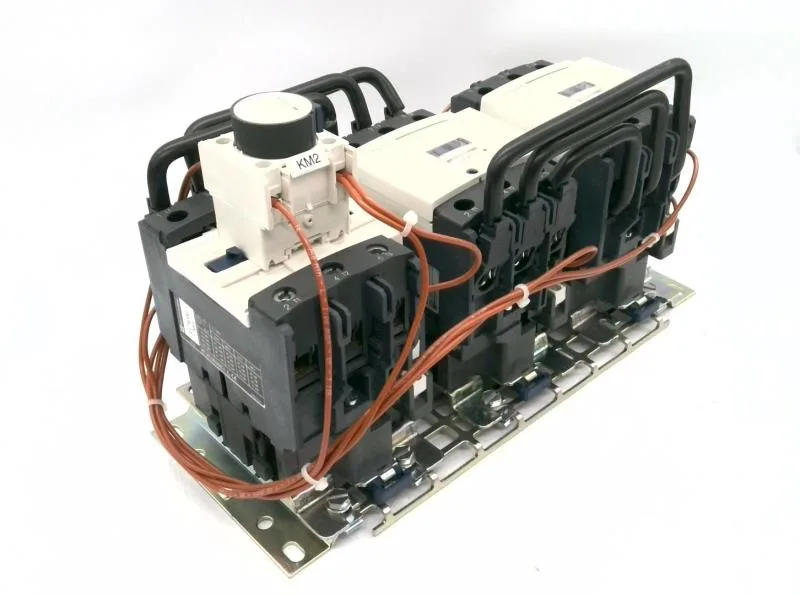

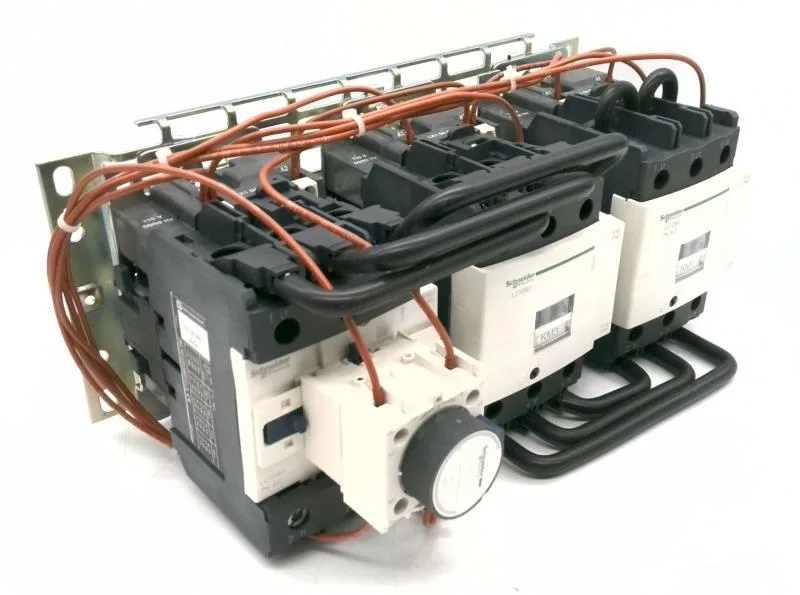

The LC3D80F7A64 is a Schneider TeSys Deca star delta starter rated 80 A, built as a 3x3P(3NO) pre-wired assembly with a 110 V AC coil and screw clamp terminals. It is discontinued, so new builds should move to the current TeSys Deca catalogue; existing panels source this code through surplus and broker channels.
