Schneider Electric LC7K09105FE7 — Contactors

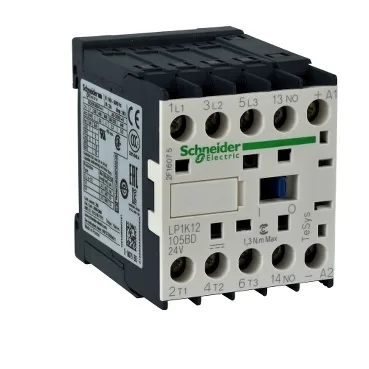

Schneider LC7K09105FE7 TeSys K Contactor, 3P, 9A AC-3, 115V

MPNLC7K09105FE7
Active

Schneider Electric TeSys K contactor, LC7K09105FE7, 3-pole, AC-3 ≤440 V 9 A, 1 NO auxiliary, 115 V AC coil, active production.

Schneider Electric LC7K09105FE7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

LC7K09105FE7 — Identification
ParameterValue
Product / component typeContactor
Series / rangeTeSys
LC7K09105FE7 — Ratings & Performance
ParameterValue
Utilisation categoryAC-3 AC-4 AC-1
LC7K09105FE7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC7K09105FE7 — Environmental
ParameterValue
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC7K09105FE7 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth57 mm
LC7K09105FE7 — Other specifications
ParameterValue
Motor power4 kW at 480 V AC 50/60 Hz 4 kW at 500...600 V AC 50/60 Hz 4 kW at 660...690 V AC 50/60 Hz 2.2 kW at 220...230 V AC 50/60 Hz 4 kW at 380...415 V AC 50/60 Hz 4 kW at 440 V AC 50/60 Hz
Heat dissipation3 W
Range of productTeSys K
Device short nameLC7K
Compatibility codeLC7K
Device applicationControl
Pole contact composition3 NO
[Ie] rated operational current20 A (at 9 A at 16 A (at 10 MOhm for signalling circuit
[Icw] rated short-time withstand current90 A 50 °C - 1 s for power circuit 85 A 50 °C - 5 s for power circuit 80 A 50 °C - 10 s for power circuit 60 A 50 °C - 30 s for power circuit 45 A 50 °C - 1 min for power circuit 40 A 50 °C - 3 min for power circuit 20 A 50 °C - >= 15 min for power circuit 80 A - 1 s for signalling circuit 90 A - 500 ms for signalling circuit 110 A - 100 ms for signalling circuit

Product details

The LC7K09105FE7 is a 3-pole TeSys K contactor from Schneider Electric, designed for motor control and general switching in industrial panels. Motor power capability spans the common three-phase voltages: 4 kW at 380–415 V and 480 V, 2.2 kW at 220–230 V, and 4 kW at 500–600 V and 660–690 V. That covers most standard 50/60 Hz supplies across European and North American panels without needing a voltage-specific variant.

Withstand and coordination

The power circuit can handle 90 A for 1 second, 85 A for 5 seconds, and 60 A for 30 seconds under short-time withstand (Icw). That gives the upstream breaker or fuse enough time to clear without welding the contacts — useful when coordinating selectivity downstream of a motor branch circuit. The signalling circuit (aux contact) withstands 110 A for 100 ms, which is typical for pilot-duty switching.

Frequently asked questions

What motor power can the LC7K09105FE7 handle?

It delivers 4 kW at 380–415 V, 440 V, 480 V, 500–600 V, and 660–690 V AC, 50/60 Hz. At 220–230 V it is rated 2.2 kW. All ratings are for three-phase induction motors in AC-3 duty.

What compliance documentation does Schneider provide for this contactor?

The contactor carries UL 94 V-1 flame retardance and NF F 16-101/102 Requirement 2 for fire behavior in rolling stock. Standard Schneider documentation includes the product certificate, RoHS/REACH declarations, and the IEC/EN 60947-4-1 test report — available on request with the RFQ.

What is the closest alternative to the LC7K09105FE7 in the TeSys K family?

The closest sibling is the LC7K09105E7, which shares the same 3-pole, 9 A AC-3 frame and the same motor power ratings but uses a 24 V AC coil instead of 115 V AC. Pin-compatible in the same footprint — the coil voltage is the only difference. If your control circuit runs 115 V, stick with the FE7; if it runs 24 V, the is the direct swap.
