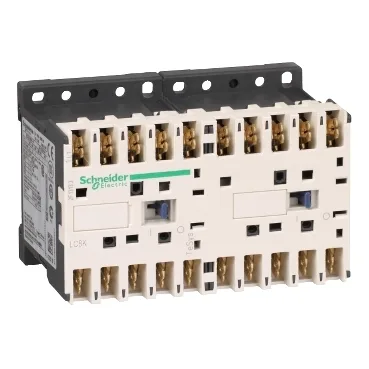

Schneider Electric LC8K12017M7 — Contactors

Schneider Electric LC8K12017M7 TeSys K Reversing Contactor,

MPNLC8K12017M7
Obsolete

Schneider Electric TeSys K reversing contactor, 3P, AC-3 ≤440 V 12 A, 1 NC, 220-230 V AC 50/60 Hz coil, IP20, 57 mm depth.

Schneider Electric LC8K12017M7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LC8K12017M7 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationResistive load Motor control
LC8K12017M7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-1 AC-4 AC-3
LC8K12017M7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC8K12017M7 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC8K12017M7 — Mechanical
ParameterValue
Width90 mm
Height58 mm
Depth57 mm

Product details

Rated AC-3 ≤440 V at 12 A, it handles reversing motor loads like conveyors, elevators, or any application needing forward-reverse control.

The 690 V AC rated operational voltage on the power circuit gives headroom for 400 V line supplies.

This reversing contactor is designed for control panels in industrial automation — typically switching three-phase induction motors on conveyors, pumps, or machine tools where direction reversal is needed. The preassembled reversing busbar simplifies panel wiring, saving a few terminal connections compared to building the reversing circuit from two separate contactors and a mechanical interlock.

Frequently asked questions

What is the closest alternative to the LC8K12017M7?

No official successor order code is listed in the lifecycle record. For a direct replacement, you would need to source the exact LC8K12017M7 through surplus or broker channels against an RFQ. A functionally similar TeSys K reversing contactor with the same coil voltage and current rating may exist, but pin compatibility and busbar alignment must be verified against the panel layout.

What are the key ratings of the LC8K12017M7?

It is a 3-pole reversing contactor rated AC-3 ≤440 V at 12 A, with a 220-230 V AC 50/60 Hz coil. It includes 1 NC auxiliary contact. The power circuit is rated for 690 V AC. IP20 protection, dimensions 57 mm deep × 90 mm wide × 58 mm high.
