Schneider Electric LE1-M35M722
MPNLE1-M35M722
Obsolete

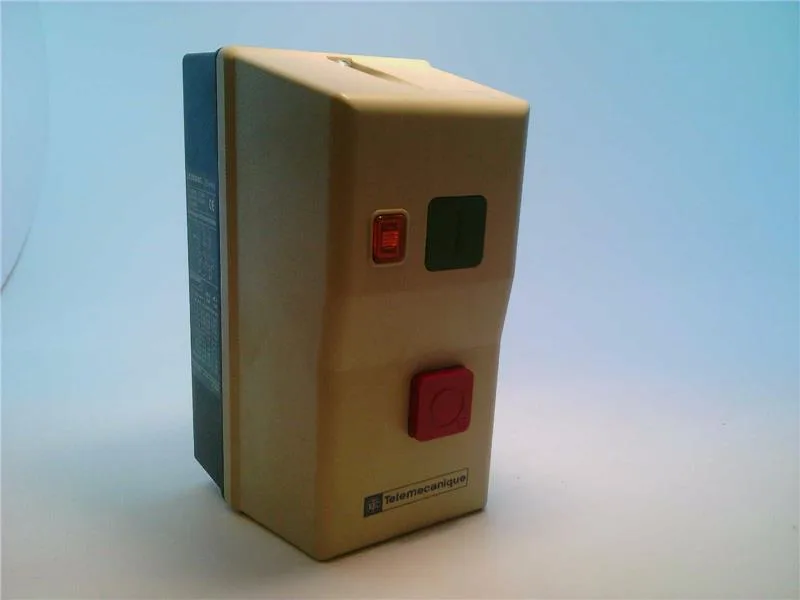

LE1-M35M722 - ENCLOSED by TELEMECANIQUE
$58.42Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Current | 16 A |
| Utilization category | AC-3 |
| Enclosure_material | ABS (acrylonitrile butadiene-styrene) |
| Cable entry number | 2 ISO20 top 2 ISO25 top 2 Pg 13 top 2 Pg 21 top 2 ISO20 bottom 2 ISO25 bottom 2 Pg 13 bottom 2 Pg 21 bottom 2 Pg 16 top 2 Pg 16 bottom |
| Depth | 108 |
| Width | 78 |
| Height | 160 |
| Standards | IEC 60947-4-1 |
| Range | TeSys |
| Power | 4 kW at 240 V AC 50/60 Hz 7.5 kW at 415 V AC 50/60 Hz 7.5 kW at 380/400 V AC 50/60 Hz 3.7 kW at 220/230 V AC 50/60 Hz |
| IP rating | IP65 conforming to IEC 60529 |
| Control_type | Push-button start green I Push-button stop/reset red O |
All specifications
| Parameter | Value |
|---|---|
| Package_type | PCE |
| Coil voltage | 220 |
| Local signalling | Operating: LED (yellow) |
| Application_type | Standard |
| Device short name | LE1M |
| Device composition | Contactor Earth terminal Neutral terminal Thermal overload relay |
| Environmental characteristic | Standard environment |
| Main_product_or_component_type | Enclosed DOL starter |
| Operating temperature | -5 |
MPN
LE1-M35M722
