Schneider Electric LE1M35P722
MPNLE1M35P722
Active

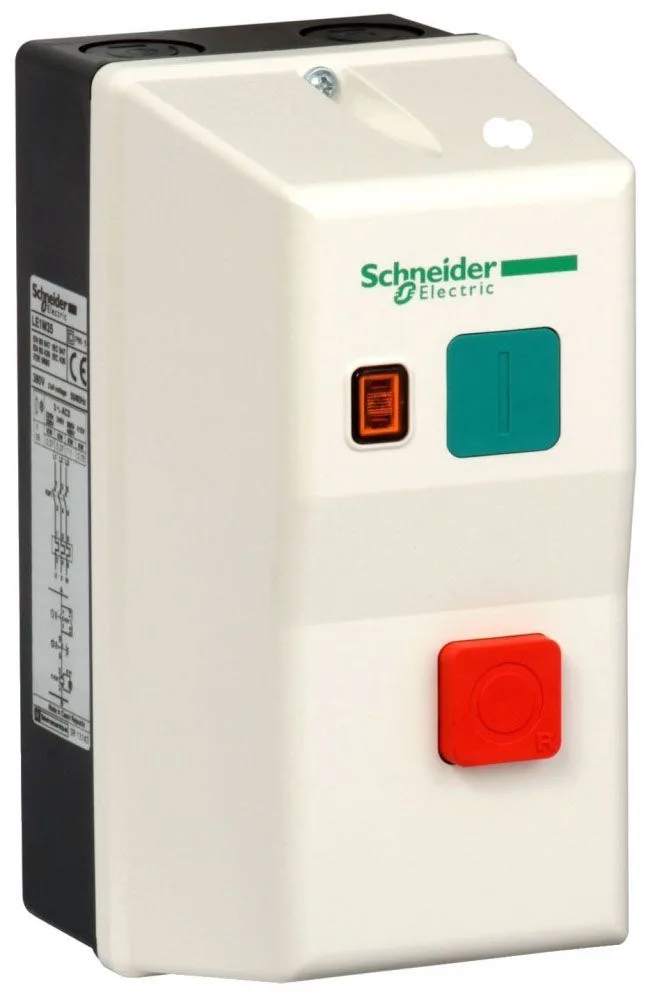

Square D LE1M35P722 Enclosed Starter|Square D LE1M35P722 Enclosed Starter
$73.06Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Push-button start green I Push-button stop/reset red O |
| Product or component type | Enclosed DOL starter |
| Coil voltage | 230 V AC 50/60 Hz |
| Motor power | 4 kW at 240 V AC 50/60 Hz 7.5 kW at 415 V AC 50/60 Hz 7.5 kW at 380/400 V AC 50/60 Hz 3.7 kW at 220/230 V AC 50/60 Hz |
| Utilisation category | AC-3 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Cable entry number | 2 ISO20 top 2 ISO25 top 2 Pg 13 top 2 Pg 21 top 2 ISO20 bottom 2 ISO25 bottom 2 Pg 13 bottom 2 Pg 21 bottom 2 Pg 16 top 2 Pg 16 bottom |
| Depth | 108 mm |
| Width | 78 mm |
| Height | 160 mm |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Standards | IEC 60947-4-1 |
All specifications
| Parameter | Value |
|---|---|
| Range | TeSys |
| Local signalling | Operating: LED (yellow) |
| Device short name | LE1M |
| Device application | Standard |
| Device composition | Contactor Earth terminal Neutral terminal Thermal overload relay |
| Environmental characteristic | Standard environment |
| Thermal protection adjustment range | 12...16 A |
| Ambient air temperature for operation | -5...40 °C |
MPN
LE1M35P722
