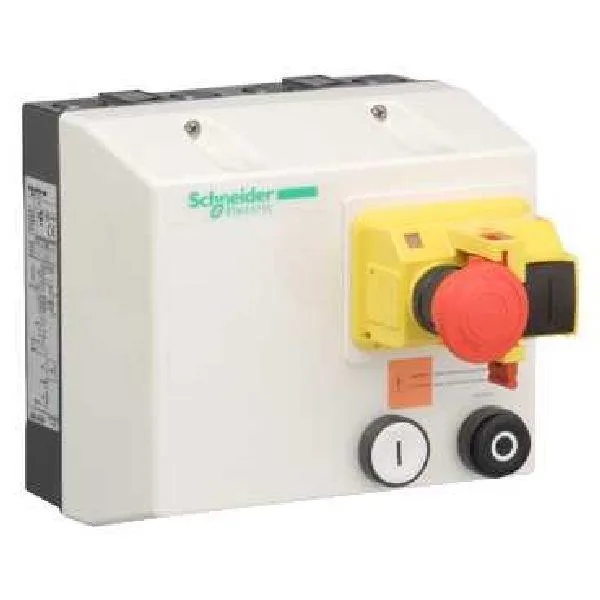

Schneider Electric LG7K06Q704
MPNLG7K06Q704
Obsolete
LG7K06Q704 - 0.18 KW by SQUARE D
$163.83Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Push-button start white I Push-button stop black O Mushroom head push-button emergency stop red |
| Product or component type | Enclosed DOL starter |
| Coil voltage | 380/400 V AC 50/60 Hz |
| Motor power | 0.18 kW at 400/415 V AC 50/60 Hz 0.18 kW at 440 V AC 50/60 Hz |
| Utilisation category | AC-3 |
| IK degree of protection | IK07 conforming to IEC 60529 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Cable entry number | 4 2 Pg 13 + 2 Pg 16 top 4 2 Pg 13 + 2 Pg 16 bottom |
| Depth | 177 mm |
| Width | 175 mm |
| Height | 165 mm |
| Material | Polycarbonate |
All specifications
| Parameter | Value |
|---|---|
| Standards | IEC 60204-1 IEC 60947-4-1 |
| Range | TeSys |
| Device short name | LG7K |
| Device application | Safety |
| Device composition | Contactor Circuit-breaker |
| Environmental characteristic | Standard environment |
| Thermal protection adjustment range | 0.4...0.63 A |
MPN
LG7K06Q704
