Schneider Electric LH36225
MPNLH36225
Active

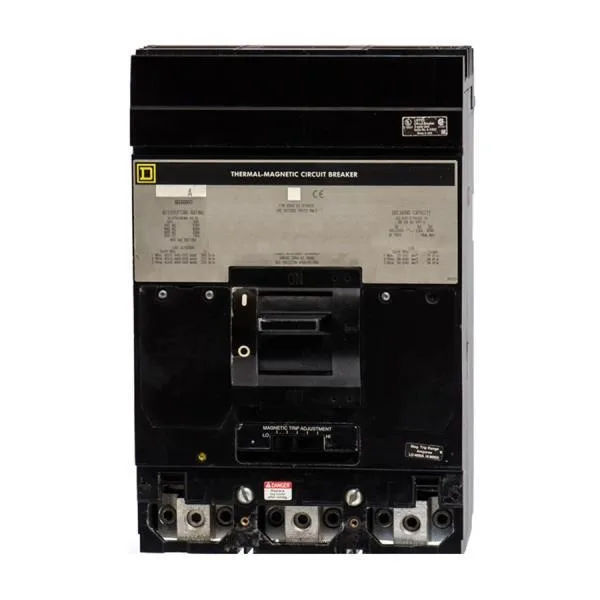

SQD LH36225 MOLDED CASE CIRCUIT|LH MOLDED CASE CIRCUIT BREAKER, 600V, 225A, 3P
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Depth | 4 in (101.6 mm) |
| Width | 6 in (152.4 mm) |
| Height | 12.5 in (317.5 mm) |
| Mounting mode | I-Line |
| Certifications | CSA UL Listed |
| Poles | 3P |
| Line rated current | 225 A |
| Terminal identifier | AL400LA |
| Trip unit technology | Thermal-magnetic |
| Electrical connection | Lugs, load I-Line connection, line |
| Magnetic hold current | 1125 A |
| Breaking capacity code | H |
| Magnetic tripping current | 2250 A |
| Product or component type | Circuit breaker |
| Circuit breaker application | HACR rated |
MPN
LH36225
