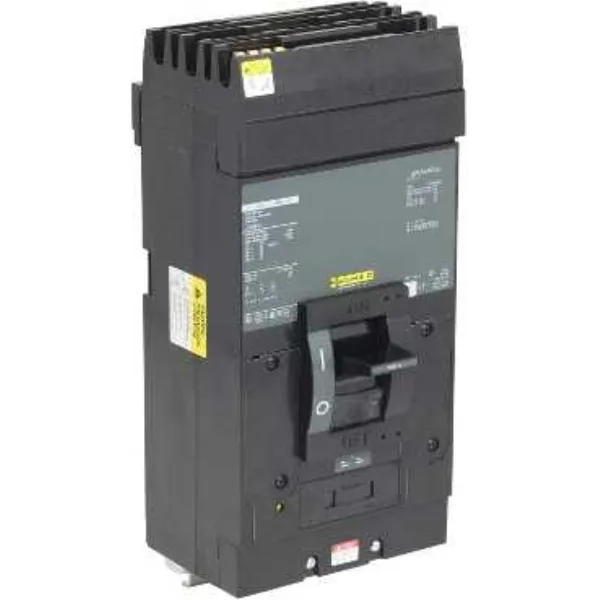

Schneider LH36400 Molded Case Breaker
MPNLH36400
Active
Breaker, Molded Case, 3P, 400A, 600VAC, 250VDC, 25 - 65kAIC|Breaker, Molded Case, 3-Pole, 400 Amp, 600 Volt AC, 250 Volt DC, 25 - 65 kAIC, L Frame, I-Line, Plug On
$7,000.00 – $11,675.92Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Circuit breaker |
| Current | 400 A |
| Magnetic hold current | 2000 A |
| Breaking capacity code | H |
| Magnetic tripping current | 4000 A |
| Poles | 3P |
| Mounting mode | I-Line |
| Terminal identifier | AL400LA |
| Electrical connection | Lugs, load I-Line connection, line |
| Depth | 4 in (101.6 mm) |
| Width | 6 in (152.4 mm) |
| Height | 12.5 in (317.5 mm) |
| Certifications | UL listed CSA |
| Trip unit technology | Thermal-magnetic |
| Circuit breaker application | HACR rated |
MPN
LH36400
