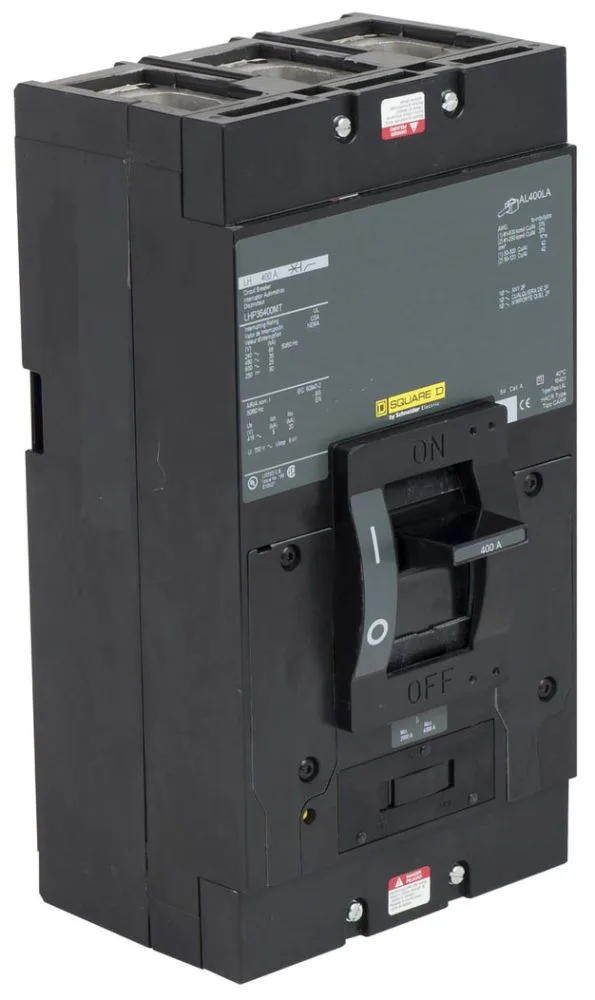

Schneider LHP36400MT Molded Case Breaker
MPNLHP36400MT
Active
SQUARE D LHP36400MT: MOLDED CASE CIRCUIT BREAKER 600V 400A
$10,000.00 – $10,830.80Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Circuit breaker |
| Line rated current | 400 A |
| Magnetic hold current | 2000 A |
| Breaking capacity code | H |
| Magnetic tripping current | 4000 A |
| Poles | 3P |
| Mounting mode | Unit mount |
| Terminal identifier | AL400LA |
| Electrical connection | Lugs, line Terminal, load |
| Depth | 4 in (101.6 mm) |
| Width | 6 in (152.4 mm) |
| Height | 12.5 in (317.5 mm) |
| Certifications | UL Listed CSA |
| Category | US10DE200935 |
| Tightening torque | 115.06 lbf.in (13 N.m) 0.07...0.5 in² (42...304 mm²) (AWG 1...600 kcmil) 115.06 lbf.in (13 N.m) 0.07...0.2 in² (42...127 mm²) (AWG 1...250 kcmil) |
| Trip unit technology | Thermal-magnetic |
| Circuit breaker application | HACR rated |
MPN
LHP36400MT
