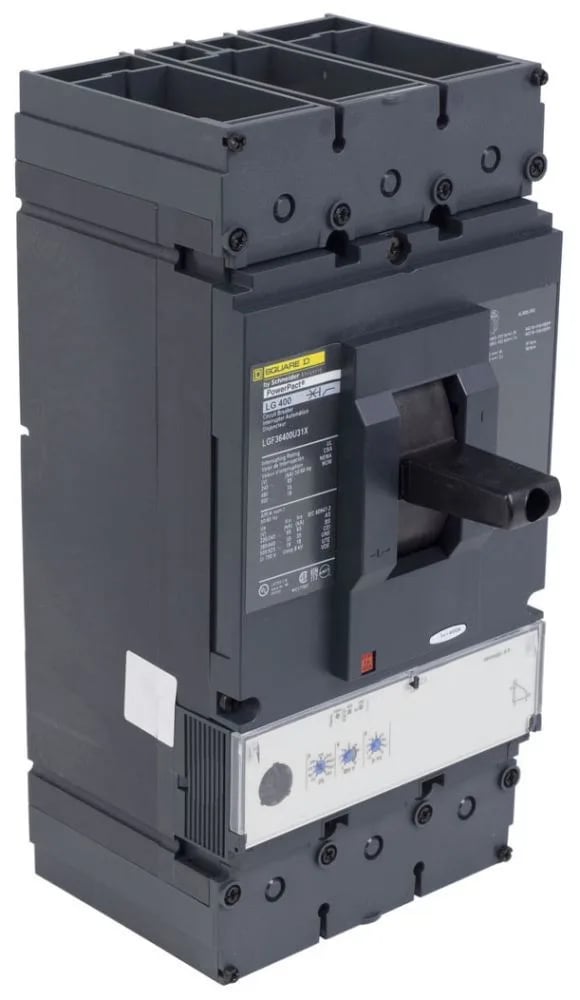

Schneider Electric LJF36000F60
MPNLJF36000F60
Active
LJF36000F60 - 600 VOLT by SCHNEIDER ELECTRIC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Product or component type | Frame |
| Voltage | 750 V IEC 60947-2 |
| [Ue] rated operational voltage | 600 V AC 50/60 Hz IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Breaking capacity | 100 kA 240 V AC 50/60 Hz UL 489 65 kA 480 V AC 50/60 Hz UL 489 25 kA 600 V AC 50/60 Hz UL 489 20 kA 250 V DC UL 489 |
| Line rated current | 200...600 A |
| Breaking capacity code | J |
| [Ics] rated service breaking capacity | 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 20 kA 250 V DC IEC 60947-2 20 kA 500 V DC IEC 60947-2 |
| Network frequency | 50/60 Hz |
| Poles | 3P |
| Utilisation category | Category A |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | Front cover IP40 |
| Communication interface | Modbus Ethernet |
| Mounting mode | Unit mount busbar) |
| Mounting support | Busbar |
| Electrical connection | Busbar connection, line Busbar connection, load |
| Pollution degree | 3 IEC 60947-1 |
| Operating altitude | < 6561.68 ft (2000 m) without derating 5000 m with derating |
| Color | Black |
| Depth | 4.3 in (110 mm) |
| Width | 5.5 in (140 mm) |
| Height | 13.4 in (340 mm) |
| Standards | UL CSA NEMA NOM-003-SCFI-2000 IEC 60947-2 |
| Range | PowerPact |
| Category | 01116 - L ELEC TRIP UNIT MOUNT BREAKER/SW |
| Installed device | Trip unit field installable |
| Device short name | L-Frame |
| Device application | Distribution |
| Protection technology | Current limiter |
| Suitability for isolation | Yes IEC 60947-2 |
| Circuit breaker application | HACR rated |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
LJF36000F60
