Schneider Electric LLN36000S60XABSO
MPNLLN36000S60XABSO
Active

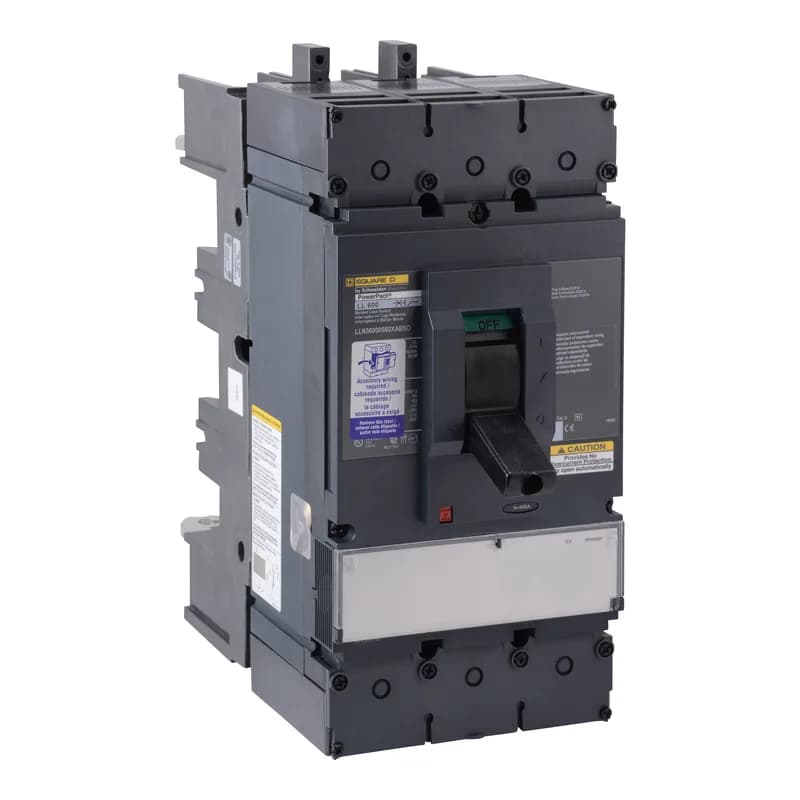

Square D LLN36000S60XABSO Automatic Molded Case Swtich 600V 600A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | PowerPact L |
| Product or component type | Automatic switch |
| Accessory (separate part type) | Shunt trip 24 V DC Auxiliary switch 2 NO + 2 NC |
| Short-circuit withstand | 125 kA 240 V UL 489 100 kA 480 V UL 489 50 kA 600 V UL 489 |
| [Ue] rated operational voltage | 600 V AC |
| Line rated current | 600 A |
| Breaking capacity code | L |
| Magnetic tripping current | 6600 A |
| Poles description | 3P |
| Mounting mode | Plug-in |
| Terminal identifier | AL600LF52K3 |
| Electrical connection | Plug-in, line Plug-in, load |
| Depth | 6.61 in (167.89 mm) |
| Width | 5.51 in (139.95 mm) |
| Height | 13.38 in (339.85 mm) |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1...0.4 in² (95...240 mm²) (AWG 3/0...500 kcmil) |
| Trip unit technology | Magnetic |
