Schneider Electric LLN36000S60XABY023
MPNLLN36000S60XABY023
Active

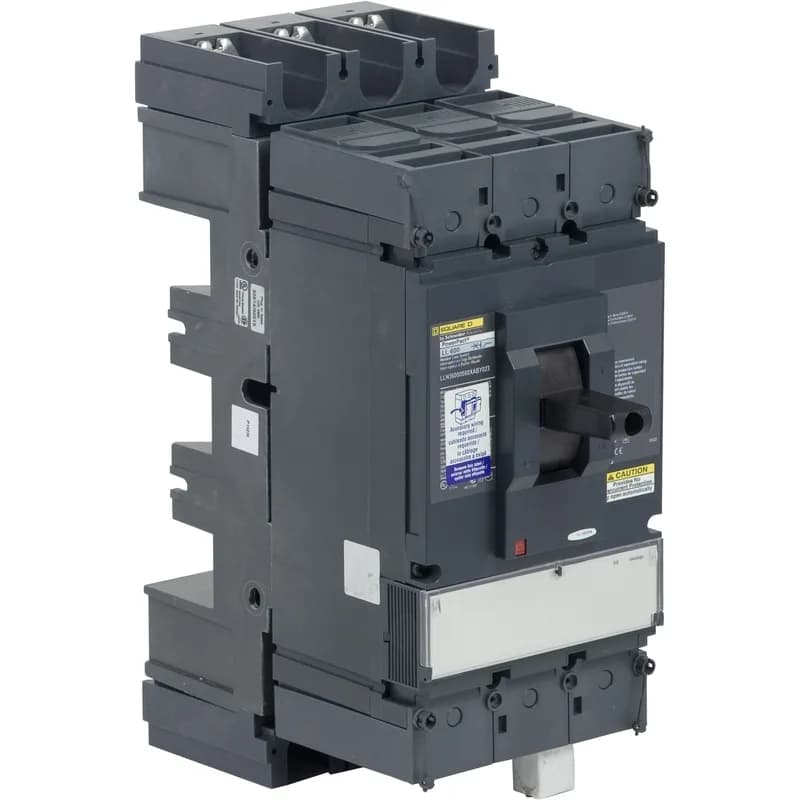

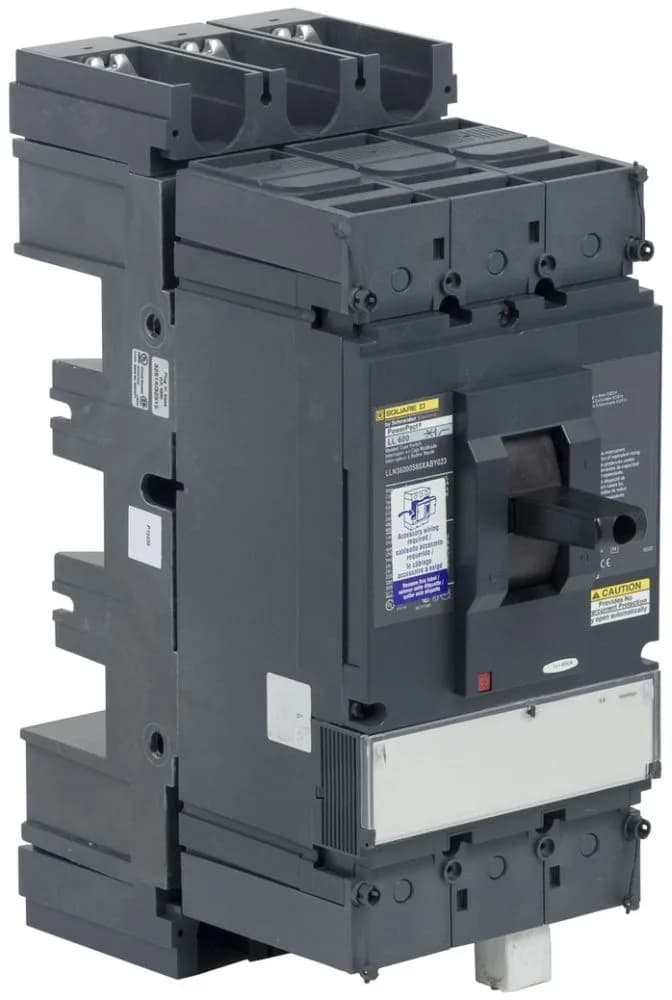

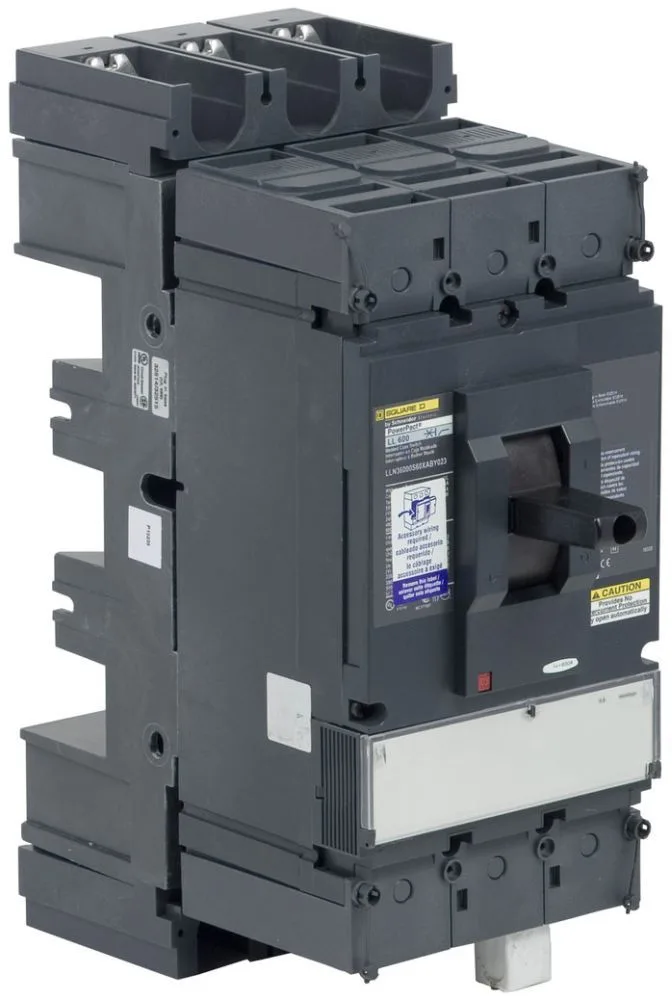

Square D LLN36000S60XABY023 Automatic Molded Case Switch 600V 600A
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | PowerPact L |
| Product or component type | Automatic switch |
| Accessory (separate part type) | Auxiliary switch 2 NO + 2 NC |
| Short-circuit withstand | 125 kA 240 V UL 489 100 kA 480 V UL 489 50 kA 600 V UL 489 |
| [Ue] rated operational voltage | 600 V AC |
| Line rated current | 600 A |
| Breaking capacity code | L |
| Magnetic tripping current | 6600 A |
| Poles description | 3P |
| Mounting mode | Plug-in |
| Terminal identifier | AL600LF52K3 |
| Electrical connection | Plug-in, line Plug-in, load |
| Depth | 6.61 in (167.89 mm) |
| Width | 5.51 in (139.95 mm) |
| Height | 13.38 in (339.85 mm) |
| Category | US10DE201116 |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1...0.4 in² (95...240 mm²) (AWG 3/0...500 kcmil) |
| Trip unit technology | Magnetic |
MPN
LLN36000S60XABY023
