Schneider Electric LMC802CAA10000
MPNLMC802CAA10000
Active

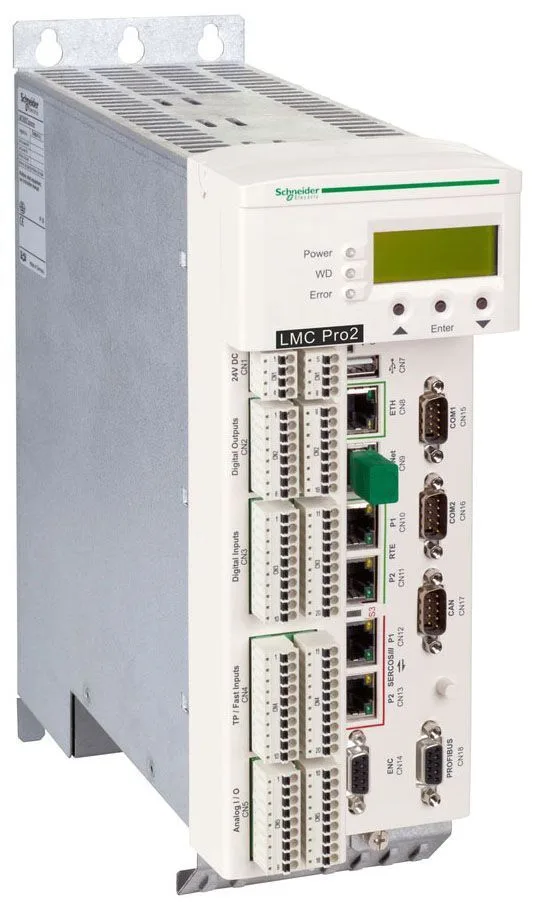

Square D LMC802CAA10000 Motion Controller|Square D LMC802CAA10000 Motion Controller
$7,780.02 – $9,590.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Memory type | 256 kB NVRAM 1 GB RAM DDR3L |
| Range of product | PacDrive 3 |
| Analogue input type | Voltage analog input - 10...10 V Current analog input - 20...20 mA |
| Product or component type | Motion controller |
| Integrated connection type | 2 Ethernet port RJ45 Sercos 1 CAN port SUB-D 9 CANopen 1 USB port USB type A 2 Ethernet port RJ45 RT-Ethernet (real-time) 1 Ethernet port RJ45 PacNet 1 port SUB-D 9 Profibus DP 1 COM1 serial link SUB-D 9 RS232 1 COM2 serial link SUB-D 9 RS422/RS485 1 port SUB-D 9 master encoder 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T, FTP/HTTP |
| Discrete input voltage type | DC |
| Discrete input voltage | 0...6 V 20...33 V |
| Supply voltage | 24 V DC |
| Discrete input current | 5 mA digital input 5 mA interrupt input 5 mA touch probe input |
| Discrete output current | 250 mA digital output |
| Maximum leakage current | 0.4 mA |
| Power consumption in | 36 W |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20IEC 60529 |
| Pollution degree | 2 IEC 61131-2 |
| Shock resistance | 150 m/s² 6 ms operation)IEC 60721-3-3 |
| Relative humidity | 5...95 % without condensation |
| Vibration resistance | 3.5 mm 5...8.4 Hz 10 m/s² 8.4...150 Hz |
| Depth | 9.6 in (243 mm) |
| Width | 3.9 in (100 mm) |
| Height | 12.2 in (310 mm) |
| Standards | CSA C22.2 No 274 UL 508C CSA C22.2 No 14 IEC 61131-2 |
| Supply | Power supply 24 VDC, <1 A |
| Category | US1PC5218354 |
| Number of axis | 130 |
| Input impedance | 100000 Ohm analog input 500 Ohm |
| Programming language | SFC (sequential function chart) FBD (function block diagram) IL (instruction list) CFC (continuous function chart) ST (structured text) LD (ladder) |
| Analogue input number | 2 |
| Anti bounce filtering | 1 ms or 5 ms configurable digital input 100 µs touch probe input 0.1 ms or 1 ms configurable interrupt input |
| Discrete input number | 20 digital input IEC 61131-2 Type 1 4 interrupt input IEC 61131-2 Type 1 16 touch probe input IEC 61131-2 Type 1 |
| Discrete output number | 16 digital output 2 analog output |
| Analogue input resolution | 12 bits |
| Ambient air temperature for operation | 41...131 °F (5...55 °C) |
MPN
LMC802CAA10000
