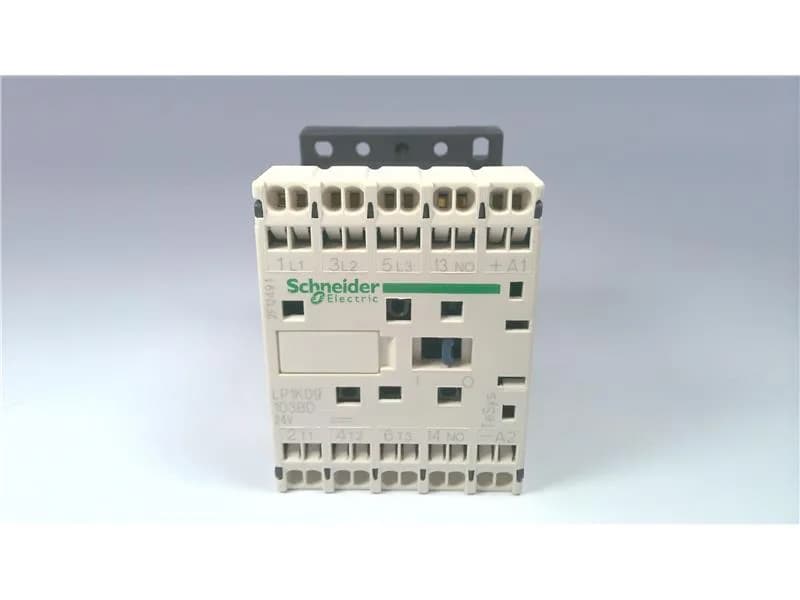

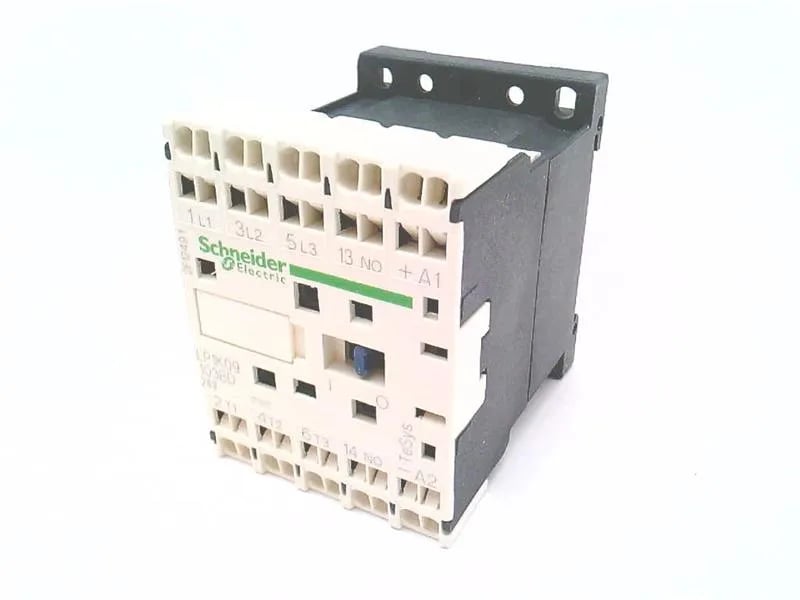

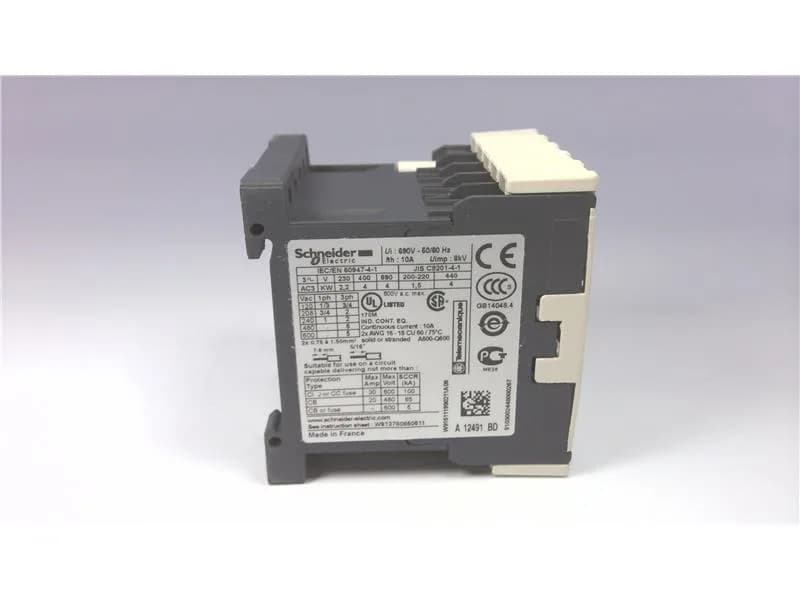

Schneider Electric LP1K09103BD
MPNLP1K09103BD
Active
Square D LP1K09103BD Contactor 600VAC|Square D LP1K09103BD Contactor 600VAC
$19.05Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Auxiliary contacts type | Instantaneous 1 NO |
| Product or component type | Contactor |
| Minimum switching voltage | 17 V for signalling circuit |
| Control circuit voltage limits | Operational: 0.8...1.15 Uc (at Drop-out: >= 0.10 Uc (at <122 °F (50 °C)) |
| [Ue] rated operational voltage | Power circuit Signalling circuit 10 MOhm for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Inrush power in | 3 W 68 °F (20 °C)) |
| Hold-in power consumption in | 3 W 68 °F (20 °C) |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-3 AC-3e AC-1 AC-4 |
| IP degree of protection | IP2X |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | Rail Plate |
| Connections - terminals | spring terminals 1 0.001...0.002 in² (0.75...1.5 mm²)solid spring terminals 1 0.001...0.002 in² (0.75...1.5 mm²)flexible without cable end spring terminals 2 0.001...0.002 in² (0.75...1.5 mm²)flexible without cable end |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Depth | 2.2 in (57 mm) |
| Width | 1.8 in (45 mm) |
| Height | 2.3 in (58 mm) |
| Electrical durability | 1.3 Mcycles 9 A AC-3 1.3 Mcycles 9 A AC-3e 0.16 Mcycles 20 A AC-1 0.02 Mcycles 54 A AC-4 <= 440 V |
| Mechanical durability | 10 Mcycles |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 |
| Range | TeSys |
| Category | US10I1222321 |
| Operating time | 30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening |
| Coil technology | Without built-in suppressor module |
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Heat dissipation | 1.3 W |
| Device short name | LP1K |
| Contactor application | Resistive load Motor control |
| Maximum operating rate | 3600 cyc/h |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Ambient air temperature for storage | -58...176 °F (-50...80 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
