Schneider Electric LP1K1201ED
MPNLP1K1201ED
Active

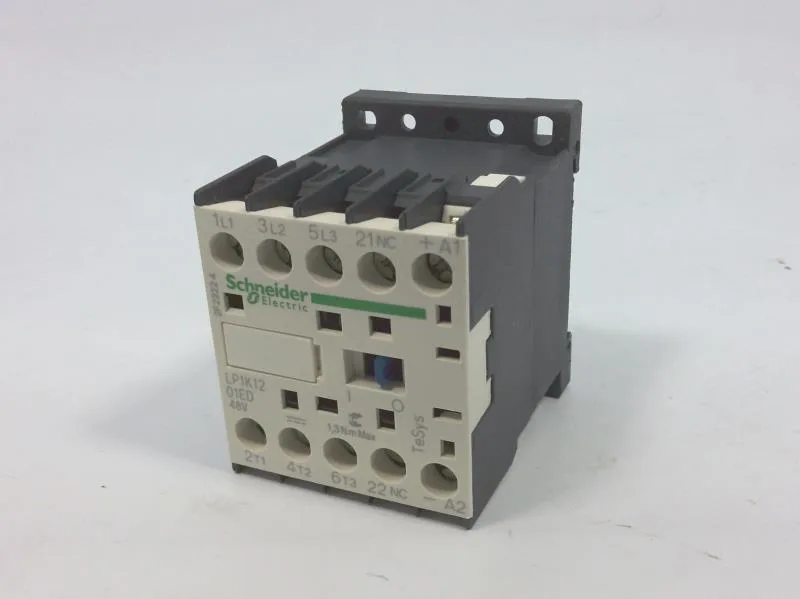

LP1K1201ED - CONTACTOR by SQUARE D
$22.67Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Auxiliary contacts type | type instantaneous 1 NC |
| Product or component type | Contactor |
| Minimum switching voltage | 17 V for signalling circuit |
| Control circuit voltage limits | Operational: 0.8...1.15 Uc (at Drop-out: >= 0.10 Uc (at <50 °C) |
| [Ue] rated operational voltage | Power circuit: Signalling circuit: 10 MOhm for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Inrush power in | 3 W (at 20 °C) |
| Hold-in power consumption in | 3 W at 20 °C |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-3 AC-3e AC-1 AC-4 |
| IP degree of protection | IP2X |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | Plate Rail |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1.5...4 mm²solid Screw clamp terminals 1 cable(s) 0.75...4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.34...2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1.5...4 mm²solid Screw clamp terminals 2 cable(s) 0.75...4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.34...1.5 mm²flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end |
| Operating altitude | 2000 m without derating |
| Depth | 57 mm |
| Width | 45 mm |
| Height | 58 mm |
| Electrical durability | 1.3 Mcycles 12 A AC-3 at Ue 1.3 Mcycles 12 A AC-3e at Ue 0.3 Mcycles 20 A AC-1 at Ue 0.02 Mcycles 72 A AC-4 at Ue <= 440 V |
| Mechanical durability | 10 Mcycles |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 |
| Range | TeSys |
| Operating time | 30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening |
| Coil technology | Without built-in suppressor module |
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Heat dissipation | 1.3 W |
| Device short name | LP1K |
| Tightening torque | 0.8...1.3 N.m - on screw clamp terminals Philips No 2 0.8...1.3 N.m - on screw clamp terminals flat Ø 6 mm 0.8...1.3 N.m - on screw clamp terminals pozidriv No 2 |
| Contactor application | Resistive load Motor control |
| Maximum operating rate | 3600 cyc/h |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Ambient air temperature for storage | -50...80 °C |
| Ambient air temperature for operation | -25...50 °C |
MPN
LP1K1201ED
