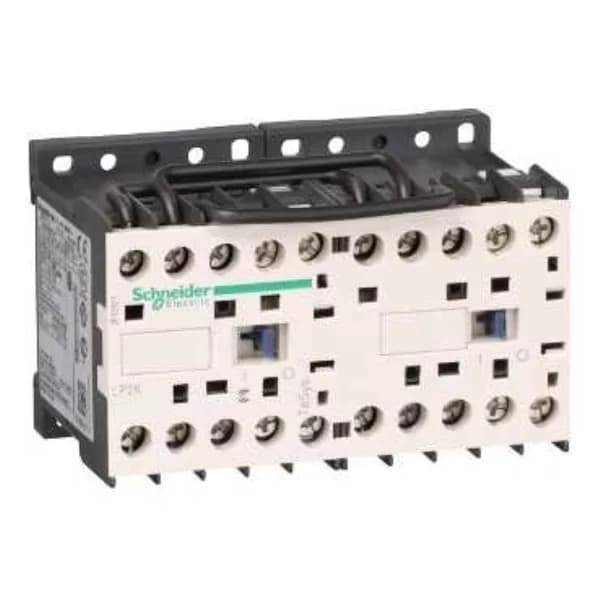

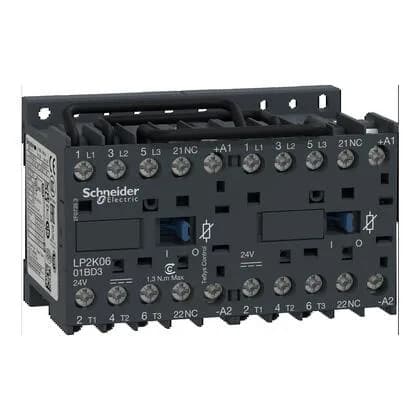

Schneider Electric LP2K0601BD3

Schneider LP2K0601BD3 TeSys K Reversing Contactor, 3P, AC-3

MPNLP2K0601BD3
Active

Schneider Electric TeSys K reversing contactor, LP2K0601BD3, 3P, AC-3 6A at 440V, 24VDC coil, 1NC, preassembled with reversing power busbar.

$40.64Ref. price · indicative, final on quote
Schneider Electric LP2K0601BD3 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LP2K0601BD3 key specifications
ParameterValue
Product or component typeReversing contactor
[Ue] rated operational voltagePower circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-3 AC-3e AC-4
IP degree of protectionIP20 VDE 0106
Operating altitude6561.68 ft (2000 m) without derating
Depth2.2 in (57 mm)
Width3.5 in (90 mm)
Height2.3 in (58 mm)
RangeTeSys
CategoryUS10I1222322

All specifications

LP2K0601BD3 additional specifications
ParameterValue
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
Device short nameLP2K
Device applicationControl
Device presentationPreassembled with reversing power busbar
Protective treatmentTC IEC 60068 TC DIN 50016
Contactor applicationMotor control
Mechanical robustnessShocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 Shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27
Ambient air temperature for storage-58...176 °F (-50...80 °C)
Ambient air temperature for operation-13...122 °F (-25...50 °C)

Product details

What this reversing contactor does

It is rated for AC-3 motor switching up to 6A at ≤440V, with additional AC-3e and AC-4 utilisation categories covering mixed motor and inching duty. The 690V rated operational voltage gives headroom for distribution-level control circuits.

Dimensions 2.2 in deep (57 mm) by 3.5 in wide (90 mm) by 2.3 in high (58 mm). IP20 finger-safe terminals. Operating ambient -25 to 50 °C. The preassembled busbar eliminates external reversing links; wire the line-side supply directly to the common terminals and motor connections to the respective forward/reverse outputs. Flame retardance V1 per UL 94, and protective treatment per TC IEC 60068 / TC DIN 50016 suits industrial panel environments with moderate vibration and shock (rated for shocks closed at 15 Gn on Z axis, 11 ms).

Frequently asked questions

What does the AC-3 6A rating mean for motor sizing?

The AC-3 6A at ≤440V means this contactor is rated for switching a three-phase induction motor drawing up to 6A under normal starting and running conditions. For motors with higher inrush or longer acceleration times, check the AC-4 rating.
