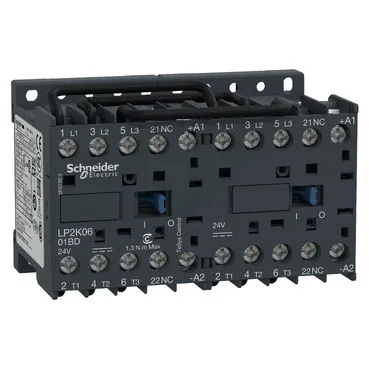

The LP2K0601BDTQ is a reversing contactor from Schneider Electric's TeSys K series — a compact, mechanically interlocked pair of contactors in one package that swaps motor phase rotation for forward/reverse control. It's rated 6 A in AC-3 and AC-3e duty at 440 V, so it handles small three-phase induction motors up to about 1.5 kW at 230 V or 2.2 kW at 400 V. The coil is 24 V DC with a built-in bidirectional peak-limiting diode suppressor, meaning no external flyback diode needed on the control circuit.
The 6 A AC-3 rating is the motor-switching current — that's the real-world figure for starting and stopping a motor under load, not a resistive-heater rating. Screw-clamp terminals accept up to 4 mm² solid or 2.5 mm² flexible with ferrules; spring-terminal versions also listed. IP2X finger protection from the front, but no washdown rating — keep it inside a panel.
Certified to EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and JIS C8201-4-1. That covers the main motor-contactor standards for North America and Europe. Ambient operating range -25 to 50 °C; storage -50 to 80 °C.
