The Schneider Electric TeSys LP2K06103BD3 is a reversing contactor from the LP2-K series, designed for three-phase motor reversing duty. It is a 3-pole unit rated 6 A in AC-3 utilisation category at 440 V, meaning it handles the inrush and switching of a small induction motor in forward-reverse applications — think conveyor reversals, pump direction changes, or actuator extend-retract cycles. The coil is 24 V DC, common in control panels with DC power supplies or PLC-driven outputs. Mechanically, it occupies a 90 mm wide by 58 mm tall by 57 mm deep footprint.

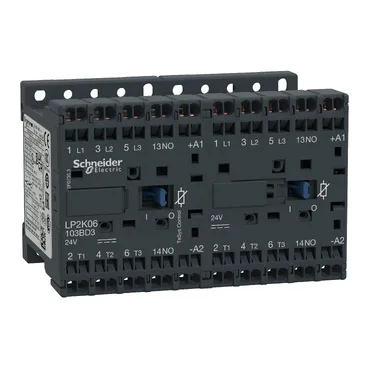

TeSys LP2K06103BD3 reversing contactor, 6A AC-3, 24V DC coil
MPNLP2K06103BD3
Obsolete
Schneider Electric TeSys LP2-K reversing contactor, LP2K06103BD3, 3-pole, AC-3 440V 6A, 24V DC coil, obsolete.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Reversing contactor |
| Application | Motor control |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: 10 MOhm for control circuit |
| Utilisation category | AC-3 AC-3e |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| Operating altitude | 2000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | Class C2 conforming to NF F 16-101 Class C2 conforming to NF F 16-102 V1 conforming to UL 94 |
| Parameter | Value |
|---|---|
| Width | 90 mm |
| Height | 58 mm |
| Depth | 57 mm |
| Parameter | Value |
|---|---|
| Device short name | LP2K |
| Power pole contact composition | 3 NO |
| Ambient air temperature for storage | -50...80 °C |
| Ambient air temperature for operation | -25...50 °C |
Product details
Frequently asked questions
What is the closest alternative to LP2K06103BD3?
No official successor order code is published. The closest functional match is a current-production TeSys D reversing contactor with the same 6 A AC-3 rating and 24 V DC coil. However, verify the mounting footprint and terminal layout — the LP2-K series base is different from the D-series, so a panel modification may be needed.
What are the key ratings of LP2K06103BD3?
It is a 3-pole reversing contactor rated 6 A in AC-3 utilisation category at 440 V, with a 24 V DC coil. Operating temperature range is -25 to 50 °C, and it can be used up to 2000 m altitude without derating. Dimensions are 90 mm wide, 58 mm tall, 57 mm deep.
