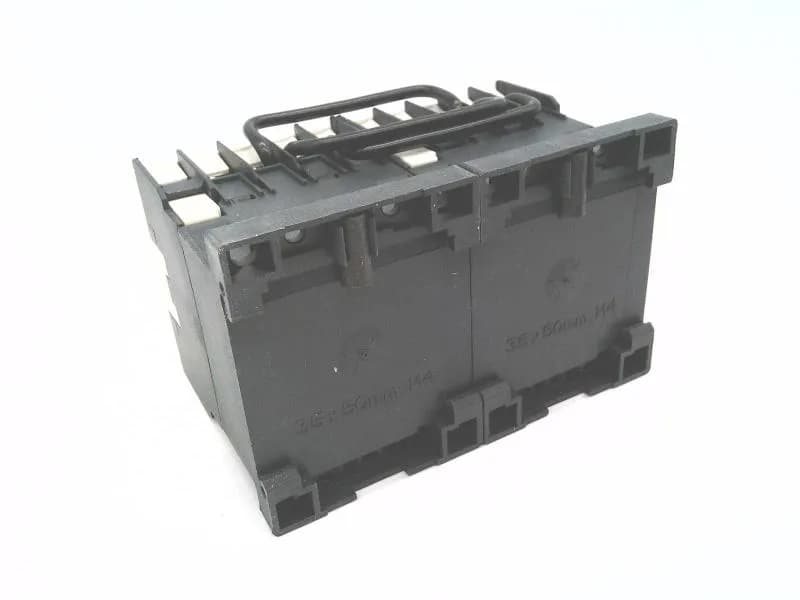

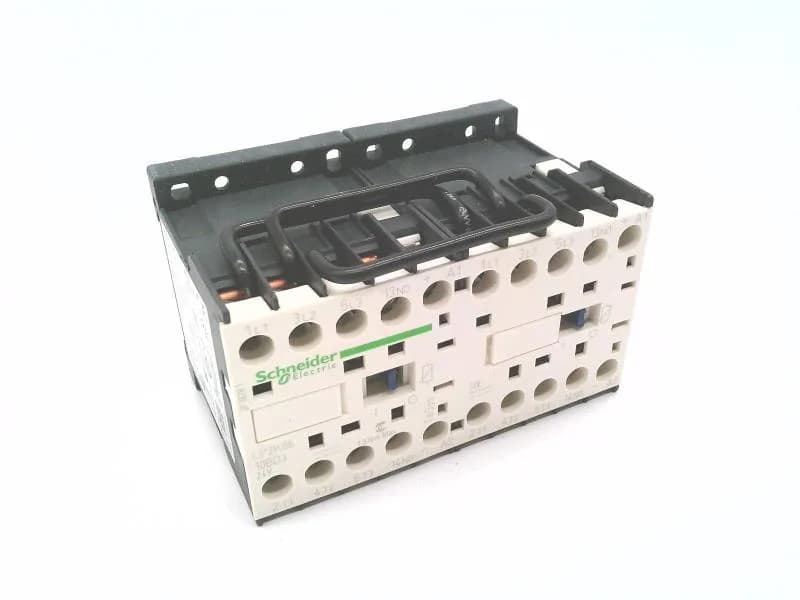

Square D TeSys K LP2K0610BD3 reversing contactor, 3 poles, 6 A at 575 V AC, preassembled with reversing power busbar.
| Parameter | Value |
|---|---|
| Product or component type | Reversing contactor |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-3 AC-3e AC-4 |
| IP degree of protection | IP20 VDE 0106 |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Depth | 2.2 in (57 mm) |
| Width | 3.5 in (90 mm) |
| Height | 2.3 in (58 mm) |
| Range | TeSys |
| Category | US10I1222322 |
| Parameter | Value |
|---|---|
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Device short name | LP2K |
| Device application | Control |
| Device presentation | Preassembled with reversing power busbar |
| Protective treatment | TC IEC 60068 TC DIN 50016 |
| Contactor application | Motor control |
| Mechanical robustness | Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 Shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27 |
| Ambient air temperature for storage | -58...176 °F (-50...80 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
Depth 2.2 in (57 mm), IP20 protected, and flame retardance V1 per UL 94. Ambient operation from -25 to 50 °C; altitude 2000 m without derating.
The contactor carries mechanical robustness ratings: 15 Gn shock on Z axis when closed, 10 Gn when open. Vibration tested to 4 Gn closed, 2 Gn open up to 300 Hz. Storage temperature range -58 to 176 °F.
The depth is 2.2 in (57 mm). Overall dimensions: height 2.3 in (58 mm), width 3.5 in (90 mm).
It meets UL 94 V1 flame retardance, IP20 protection (VDE 0106), and shock/vibration per IEC 60068-2-27 and -2-6. Protective treatment per IEC 60068 and DIN 50016.
