Schneider Electric LP2K09105BD

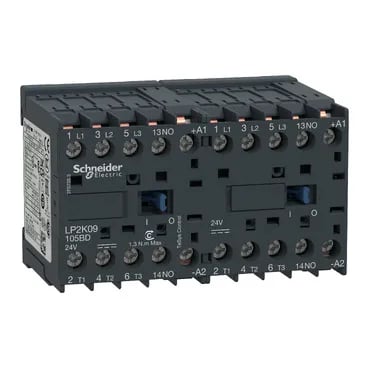

LP2K09105BD TeSys K Reversing Contactor, 9A, 3P

MPNLP2K09105BD
Active

Schneider Electric TeSys K reversing contactor, LP2K09105BD, 9 A, 3-pole, AC-3/AC-4 rated.

$217.00Ref. price · indicative, final on quote
Schneider Electric LP2K09105BD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LP2K09105BD key specifications
ParameterValue
Product or component typeReversing contactor
[Ue] rated operational voltagePower circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit
Power pole contact composition3 NO
Poles description3P
Utilisation categoryAC-4 AC-1 AC-3
IP degree of protectionIP20 VDE 0106
Operating altitude6561.68 ft (2000 m) without derating
Depth2.2 in (57 mm)
Width3.5 in (90 mm)
Height2.3 in (58 mm)
RangeTeSys
CategoryUS10I1222322

All specifications

LP2K09105BD additional specifications
ParameterValue
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
Device short nameLP2K
Device applicationControl
Device presentationPreassembled with reversing power busbar
Protective treatmentTC IEC 60068 TC DIN 50016
Contactor applicationResistive load Motor control
Mechanical robustnessShocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 Shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27
Ambient air temperature for storage-58...176 °F (-50...80 °C)
Ambient air temperature for operation-13...122 °F (-25...50 °C)

Product details

Integration specs for panel layout

The LP2K09105BD: Footprint: 2.2 in deep, 3.5 in wide, 2.3 in tall. IP20 finger-safe terminals. Flame retardance meets UL 94 V1. Ambient operating range -25 to 50 °C, no derating up to 2000 m. Mechanical robustness handles 15 Gn shocks contactor closed. Fits standard DIN-rail or screw-mount panels in conveyor MCCs.

Sourcing posture

This is a standard-catalog active line item. Sourced to order with typical lead times for the US channel. Submit an RFQ for current pricing and availability; we can lock a quantity for your BOM line.

Frequently asked questions

What is the physical size?

Depth 2.2 in (57 mm), width 3.5 in (90 mm), height 2.3 in (58 mm). It fits a compact panel footprint for conveyor control cabinets.

What environmental protection does it have?

IP20 finger-safe protection. Flame retardance V1 per UL 94. Operating temperature range -25 to 50 °C. No derating needed up to 2000 m altitude.
