Schneider Electric LP2K12105JD — Contactors

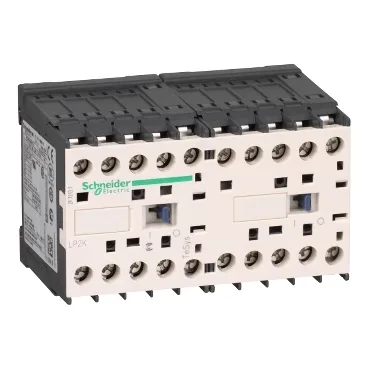

TeSys K LP2K12105JD reversing contactor, 3P, AC-3 12A, 12V D

MPNLP2K12105JD
Active

Schneider Electric TeSys K reversing contactor, LP2K12105JD, 3P, AC-3 <=440V 12A, 1 NO, 12V DC coil, 57mm depth.

Schneider Electric LP2K12105JD datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

LP2K12105JD — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationMotor control Resistive load
LP2K12105JD — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-4 AC-1 AC-3
LP2K12105JD — Contacts & Poles
ParameterValue
Pole configuration3P
LP2K12105JD — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Shocks contactor opened, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on X axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LP2K12105JD — Mechanical
ParameterValue
Width90 mm
Height58 mm
Depth57 mm

Product details

The Schneider Electric LP2K12105JD is a TeSys K reversing contactor — a 3-pole unit preassembled with a reversing power busbar, rated for AC-3 motor switching up to 12 A at 440 V and AC-1 resistive loads. The 12 V DC coil pulls in cleanly; the IP20 finger-safe housing (VDE 0106) suits it for enclosed panel mounting where reversing a small motor (conveyor, fan, pump) is needed without external interlocking.

The AC-1 rating covers resistive loads (heaters, lighting) at a higher current, but for motor duty, the AC-3 number is the one that decides fit. The 12 V DC coil means this contactor is intended for low-voltage control circuits, common in PLC-driven panels or battery-backed systems. Rated operational voltage of 690 V AC on the power circuit gives headroom for 480 V or 600 V line applications, though the AC-3 current must be derated above 440 V per standard practice.

Frequently asked questions

What are the key ratings for LP2K12105JD?

It is a 3-pole reversing contactor rated AC-3 at 12 A / 440 V, with a 12 V DC coil. The power circuit is rated for 690 V AC 50/60 Hz, and the device carries AC-1, AC-3, and AC-4 utilisation categories.

What is the physical size of this contactor?

It measures 90 mm wide, 58 mm high, and 57 mm deep, with IP20 finger-safe protection.

What compliance documentation is available for LP2K12105JD?

The part carries V1 flame retardance per UL 94, and conforms to NF F 16-101 and NF F 16-102 for railway fire-smoke-toxicity. Protective treatment conforms to IEC 60068 and DIN 50016. The IP20 rating is per VDE 0106.
