It carries AC-3 and AC-4 utilisation ratings, so it handles motor starting inrush and switching off at full speed, plus AC-1 for resistive loads. The unit ships assembled with a reversing power busbar — that saves you the time of wiring an external interlock and bus arrangement. IP20 finger protection is standard, and the operating range goes from -25°C to 50°C ambient, which covers most panel environments.

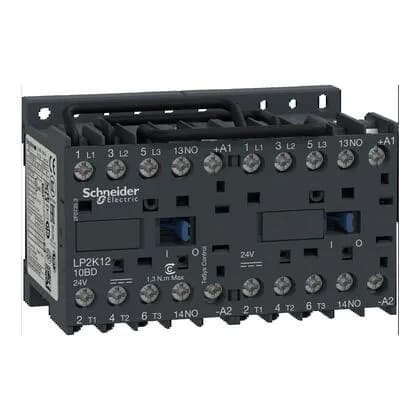

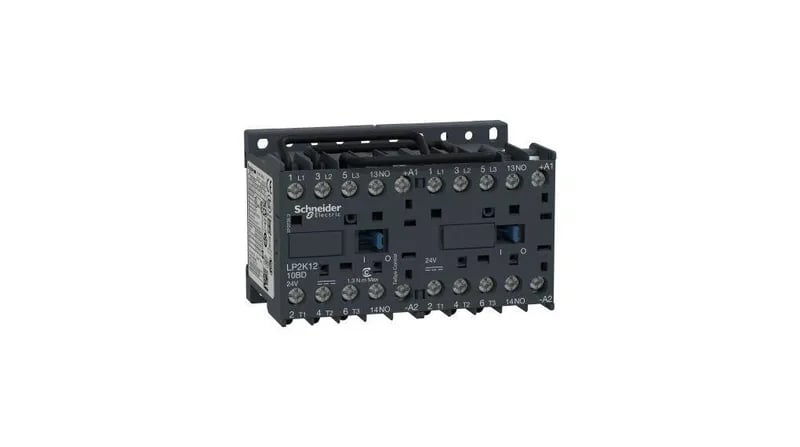

LP2K1210BD TeSys K Reversing Contactor, AC-3
MPNLP2K1210BD
Active
TeSys K reversing contactor, LP2K1210BD, 3-pole, AC-3 rated, preassembled with reversing busbar.
$44.45Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Reversing contactor |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-3 AC-3e AC-4 AC-1 |
| IP degree of protection | IP20 VDE 0106 |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Depth | 2.2 in (57 mm) |
| Width | 3.5 in (90 mm) |
| Height | 2.3 in (58 mm) |
| Range | TeSys |
| Category | US10I1222322 |
All specifications
| Parameter | Value |
|---|---|
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Device short name | LP2K |
| Device application | Control |
| Device presentation | Preassembled with reversing power busbar |
| Protective treatment | TC IEC 60068 TC DIN 50016 |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 Shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27 |
| Ambient air temperature for storage | -58...176 °F (-50...80 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
Product details
Frequently asked questions
What utilisation categories does this reversing contactor cover?
It covers AC-3, AC-3e, AC-4 (for motor control) and AC-1 (for resistive loads), as listed in the spec.
What is the ambient temperature range for operation?
The LP2K1210BD operates between -25°C and 50°C, with storage from -50°C to 80°C.
