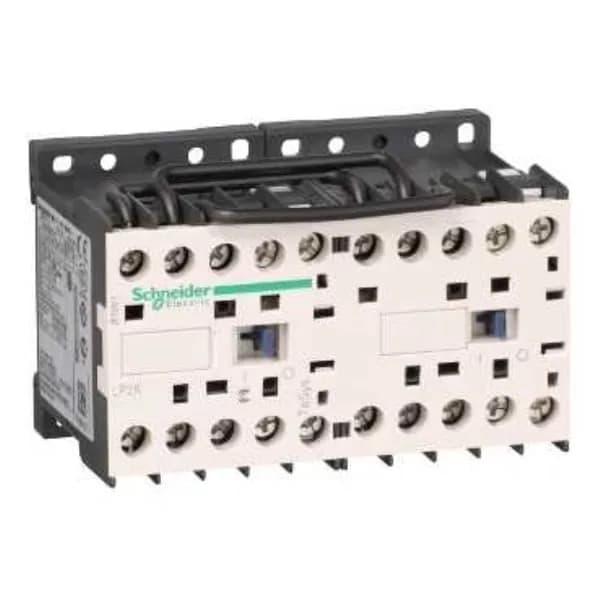

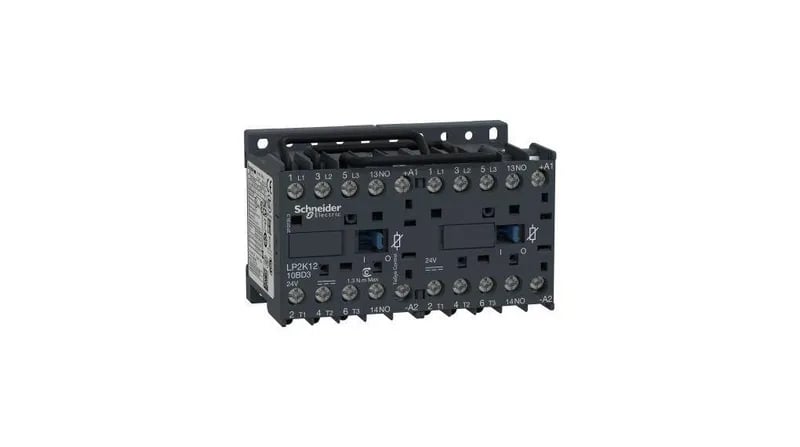

Schneider Electric TeSys K reversing contactor, LP2K1210BD3, 24 V dc coil, 3-pole, 20 A, 5.5 kW, 690 V ac, IP20, preassembled with reversing power busbar.
| Parameter | Value |
|---|---|
| Product or component type | Reversing contactor |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-3 AC-4 AC-1 AC-3e |
| IP degree of protection | IP20 VDE 0106 |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Depth | 2.2 in (57 mm) |
| Width | 3.5 in (90 mm) |
| Height | 2.3 in (58 mm) |
| Range | TeSys |
| Category | US10I1222322 |
| Parameter | Value |
|---|---|
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Device short name | LP2K |
| Device application | Control |
| Device presentation | Preassembled with reversing power busbar |
| Protective treatment | TC IEC 60068 TC DIN 50016 |
| Contactor application | Resistive load Motor control |
| Mechanical robustness | Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 Shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27 |
| Ambient air temperature for storage | -58...176 °F (-50...80 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
IP20 finger-safe protection. Shock and vibration ratings are solid (15 Gn closed, 10 Gn open on Z axis, 4 Gn vibration closed). Flame retardance meets UL 94 V1.
Rated utilisation categories: AC‑1, AC‑3, AC‑4, and AC‑3e. Coil voltage is 24 V dc; rated 20 A and 5.5 kW.
Depth is 2.2 in (57 mm). Panel depth clearance is straightforward for standard enclosures.
It is part of the TeSys K range, which includes reversing contactors with preassembled busbars for compact reversing applications.
The part carries UL 94 V1 flame retardance rating on the enclosure. Additional certifications (cUL, IEC) are standard for the TeSys K family; specific declarations are available on request.
