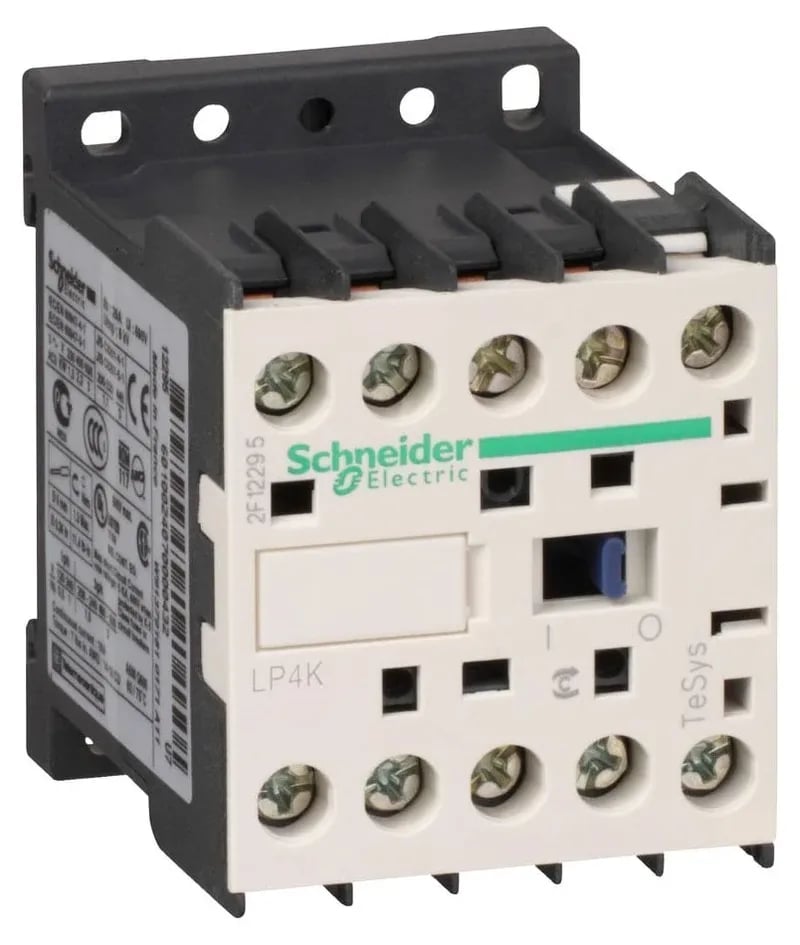

Schneider Electric LP4K09008SW3

Schneider LP4K09008SW3 Contactor, 72 VDC, 20 A AC-1

MPNLP4K09008SW3
Obsolete

Schneider Electric LP4K09008SW3, TeSys LP4K series, 4-pole contactor, 72 V DC coil, 20 A AC-1 rated operational current at 690 V AC.

$125.09Ref. price · indicative, final on quote
Schneider Electric LP4K09008SW3 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LP4K09008SW3 key specifications
ParameterValue
Control circuit typeDC wide range
Product or component typeContactor
Coil voltage72 V DC
VoltagePower circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA C22.2 No 14
Control circuit voltage limitsOperational: 0.7...1.3 Uc (at Drop-out: >= 0.10 Uc (at <122 °F (50 °C))
[Ue] rated operational voltagePower circuit Signalling circuit <= 690 V AC <= 400 Hz
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current90 A 122 °F (50 °C) - 1 s for power circuit 85 A 122 °F (50 °C) - 5 s for power circuit 80 A 122 °F (50 °C) - 10 s for power circuit 60 A 122 °F (50 °C) - 30 s for power circuit 45 A 122 °F (50 °C) - 1 min for power circuit 40 A 122 °F (50 °C) - 3 min for power circuit 20 A 122 °F (50 °C) - >= 15 min for power circuit
Breaking capacity110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947
[Ie] rated operational current20 A (at <140 °F (60 °C)) at <= 690 V AC AC-1 for power circuit
[Ith] conventional free air thermal current20 A (at 140 °F (60 °C)) for power circuit 10 A (at 122 °F (50 °C)) for signalling circuit
Inrush power in1.8 W 68 °F (20 °C))

All specifications

LP4K09008SW3 additional specifications
ParameterValue
Hold-in power consumption in1.8 W 68 °F (20 °C)
Power pole contact composition2 NO + 2 NC
Poles description4P
Utilisation categoryAC-1
IP degree of protectionIP2X
Mounting supportRail Plate
Connections - terminalsscrew clamp terminals 1 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 1 0.001...0.006 in² (0.75...4 mm²)flexible without cable end screw clamp terminals 1 0.0005...0.004 in² (0.34...2.5 mm²)flexible with cable end screw clamp terminals 2 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 2 0.001...0.006 in² (0.75...4 mm²)flexible without cable end screw clamp terminals 2 0.0005...0.002 in² (0.34...1.5 mm²)flexible with cable end Power circuit screw clamp terminals 2 0.002 in² (1.5 mm²)flexible with cable end
Operating altitude6561.68 ft (2000 m) without derating
Depth2.2 in (57 mm)
Width1.8 in (45 mm)
Height2.3 in (58 mm)
Electrical durability0.16 Mcycles 20 A AC-1 <= 690 V
Mechanical durability30 Mcycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4
RangeTeSys
CategoryUS10I1222321
Operating time10...20 ms coil de-energisation and NO opening 30...40 ms coil energisation and NO closing 25...35 ms coil energisation and NC opening 15...25 ms coil de-energisation and NC closing
Coil technologyWith integral suppression device
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
Heat dissipation1.8 W
Average impedance3 mOhm - Ith 20 A 50 Hz for power circuit
Device short nameLP4K
Tightening torque7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminals Philips No 2 7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminals flat Ø 6 mm 7.08...11.5 lbf.in (0.8...1.3 N.m) screw clamp terminals pozidriv No 2
Overvoltage categoryIII
Contactor applicationResistive load
Associated fuse rating25 A gG at 25 A aM for power circuit
Maximum operating rate3600 cyc/h
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity110 A AC for power circuit conforming to IEC 60947
Ambient air temperature for storage-58...176 °F (-50...80 °C)
Ambient air temperature for operation-13...122 °F (-25...50 °C)

Product details

Part at a glance

The LP4K09008SW3 is a 4-pole TeSys contactor from Schneider Electric, switching resistive loads up to 20 A AC-1 at 690 V. It operates on a 72 V DC control voltage with integral surge suppression. Rated 20 A in AC-1 utilisation category – sized for resistive or slightly inductive loads like heaters or lighting. The 4-pole arrangement gives 2 NO + 2 NC power contacts. Coil hold-in power is 1.8 W, and the control circuit accepts a wide DC range from 0.7 to 1.3 Uc. Mechanical durability is rated at 30 million cycles; electrical endurance at 0.16 million cycles at 20 A AC-1.

Integration notes

Mounts on rail or plate. Screw clamp terminals accept 1.5 to 4 mm² solid or 0.75 to 4 mm² flexible wire; tightening torque 0.8 to 1.3 Nm. IP2X finger protection. Overall dimensions: height 58 mm, width 45 mm, depth 57 mm. Standards include IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1 – covering European and North American panel approvals. Flame retardance is V1 per UL 94.

Frequently asked questions

What is the depth of LP4K09008SW3?

The depth is 2.2 in (57 mm).

What is the range of LP4K09008SW3?

It belongs to the TeSys range from Schneider Electric.

What compliance documentation does this contactor carry?

It is listed to EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and also carries flame retardance V1 per UL 94.
