No separate busbar kit to source or install; it clips onto the same DIN rail and fits the 57 mm depth of the TeSys K frame. Rated for utilisation categories AC-1 (resistive), AC-3 (standard motor start/run), AC-4 (plugging/inching), and AC-3e (high-inertia motor starts). That means it can switch resistive loads and motor loads right up to its rated current – no need to derate for AC-3 duty. The 3 NO power pole contacts cover the main circuit. IP20 finger-safe terminals. Flame retardance meets UL 94 V1 and NF F 16-101 / 16-102, so it passes typical industrial panel fire-resistance requirements without extra sleeving.

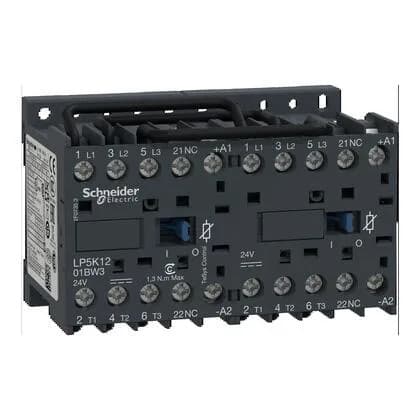

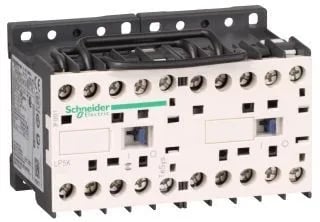

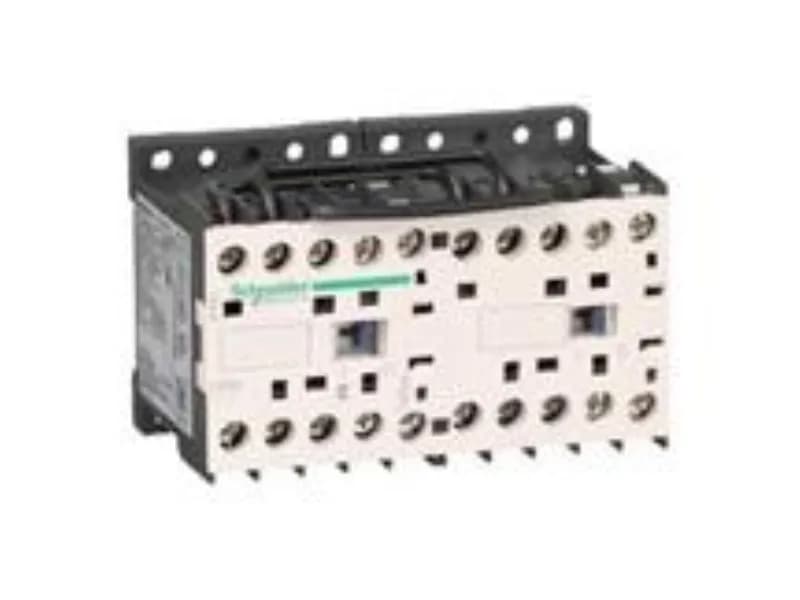

SQD LP5K1201BW3 TeSys K Reversing Contactor, 3P, AC-3e
MPNLP5K1201BW3
Active
Schneider Electric TeSys K LP5K1201BW3 reversing contactor, preassembled with reversing power busbar, 3-pole, IP20, utilisation category AC-1 through AC-3e.
$49.53Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Reversing contactor |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-1 AC-3 AC-4 AC-3e |
| IP degree of protection | IP20 VDE 0106 |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Depth | 2.2 in (57 mm) |
| Width | 3.5 in (90 mm) |
| Height | 2.3 in (58 mm) |
| Range | TeSys |
| Category | US10I1222322 |
All specifications
| Parameter | Value |
|---|---|
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Device short name | LP5K |
| Device application | Control |
| Device presentation | Preassembled with reversing power busbar |
| Protective treatment | TC IEC 60068 TC DIN 50016 |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 Shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27 |
| Ambient air temperature for storage | -58...176 °F (-50...80 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
Product details
Frequently asked questions
What are the key dimensions of the LP5K1201BW3?
Depth 2.2 in (57 mm), width 3.5 in (90 mm), height 2.3 in (58 mm).
What is the range of this contactor?
It belongs to the TeSys K range – a compact industrial contactor family for motor control and resistive load switching.
What compliance and safety specifications does it meet?
Flame retardance V1 conforming to UL 94, IP20 degree of protection per VDE 0106, and it also meets NF F 16-101 and NF F 16-102 for railway rolling stock fire behavior.
