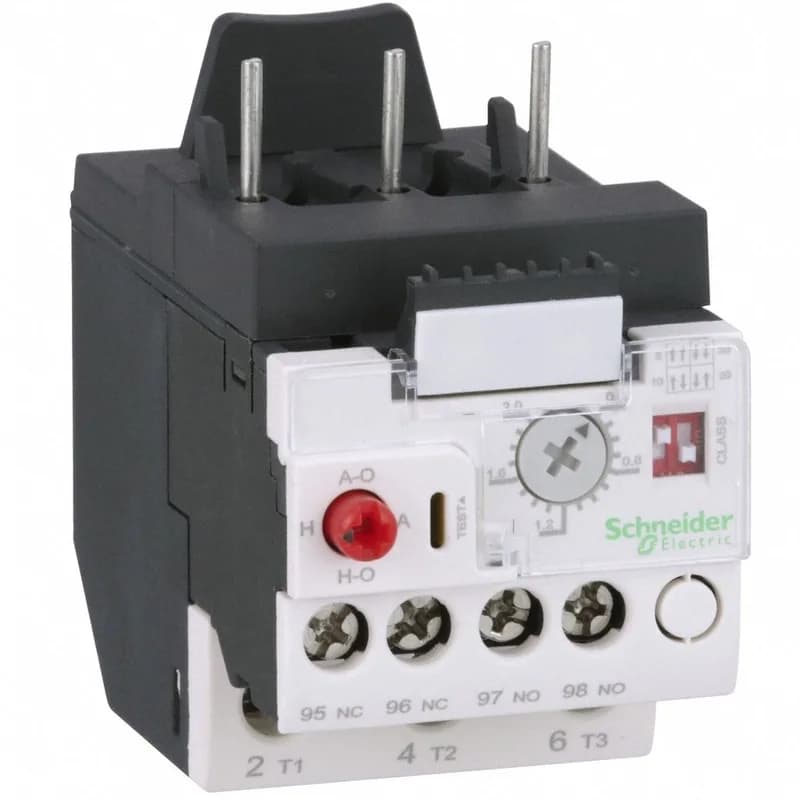

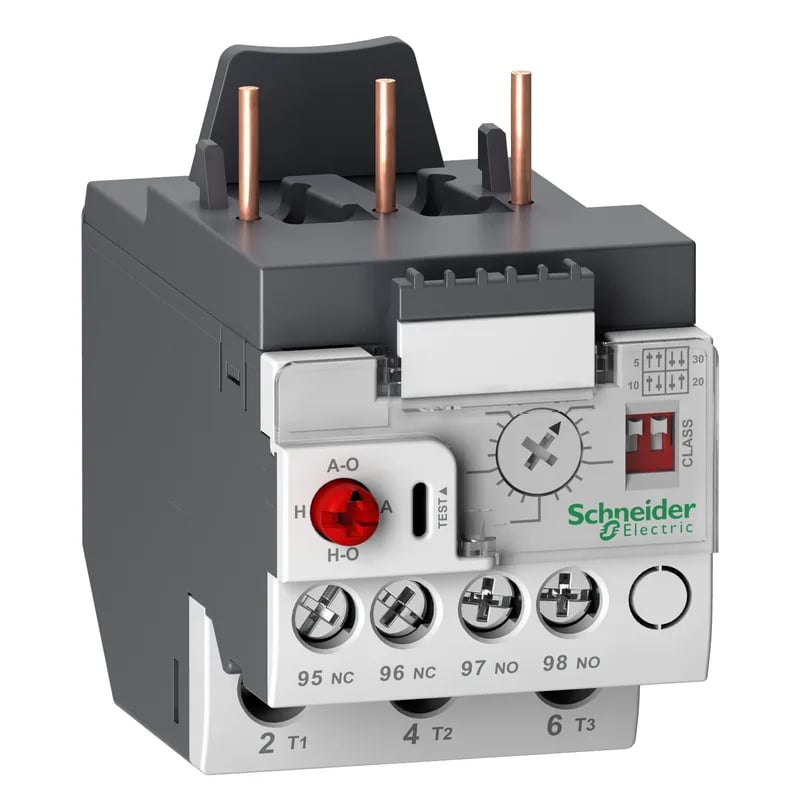

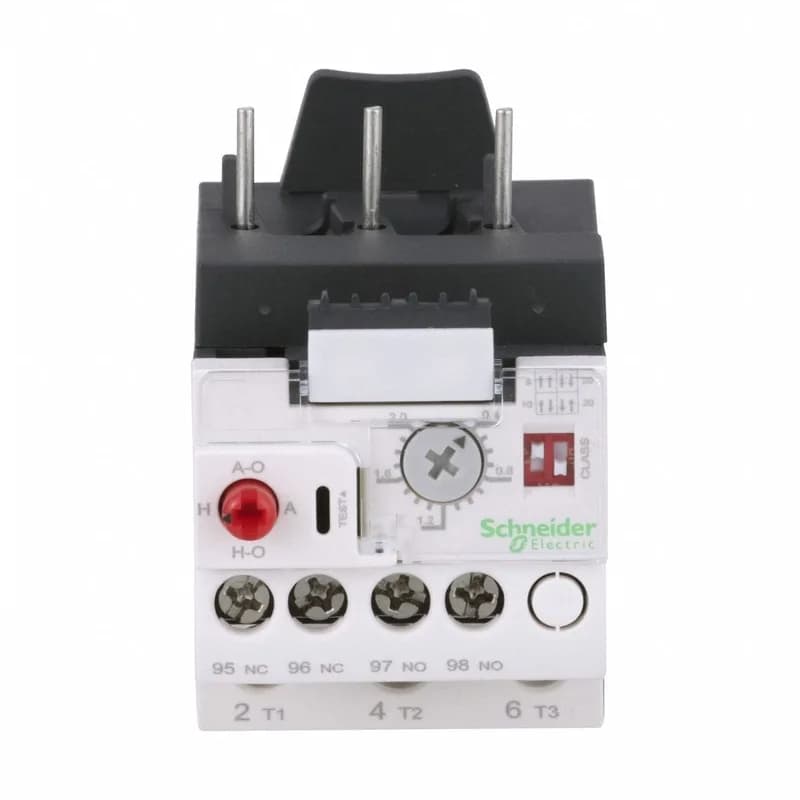

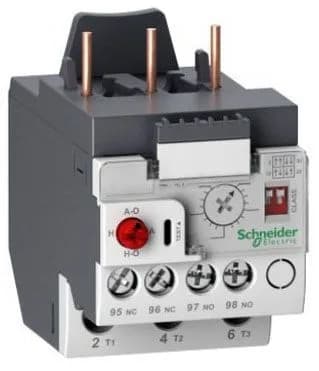

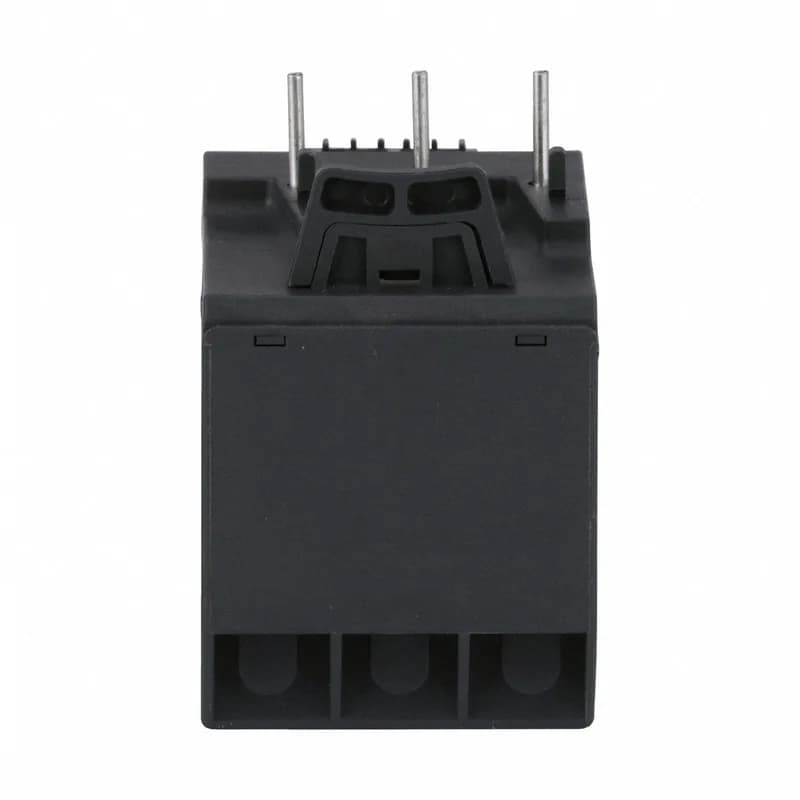

Schneider Electric LR9D02
MPNLR9D02
Active
LR9D ELECTRONIC OLR 0.4-2A 600VAC|LR9D ELECTRONIC OLR 0.4-2A 600VAC
$39.37Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Red push-button stop and manual reset White 2 microswitches adjustable trip class Red knob automatic reset White dial full-load current adjustment |
| Product or component type | Electronic thermal overload relay |
| Voltage | Power circuit 1000 V Signalling circuit 690 V |
| [Ue] rated operational voltage | 690 V power circuit 660 V signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ith] conventional free air thermal current | 5 A signalling circuit |
| Power consumption in | 300 mW |
| Phase failure sensitivity | Phase difference > 40% 3 s IEC 60947-4-1 |
| IP degree of protection | IP20 front face IEC 60529 |
| Mounting support | Under contactor Plate, with specific accessories Rail, with specific accessories |
| Connections - terminals | Control circuit screw clamp terminals 1 0.004 in² (2.5 mm²) solid or flexible - without cable end Power circuit screw clamp terminals 1 0.02 in² (16 mm²) solid or flexible - without cable end |
| Operating altitude | 6561.68 ft (2000 m) without derating |
All specifications
| Parameter | Value |
|---|---|
| Depth | 3.1 in (79.9 mm) |
| Width | 1.8 in (45 mm) |
| Height | 2.9 in (72.5 mm) |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 |
| Range | TeSys |
| Category | US10I1222348 |
| Time range | 1.5...4 min - automatic reset time |
| Device short name | LR9D |
| Relay application | Motor protection |
| Tightening torque | Control circuit 0.8 N.m screw clamp terminals Power circuit 3.1 N.m screw clamp terminals |
| Tripping threshold | 1.25 In IEC 60947-4-1 |
| Dielectric strength | 6 kV 50 Hz IEC 60255-5 |
| Mechanical robustness | Vibrations 10...150 Hz6 Gn IEC 60068-2-6 Shocks 11 ms15 gn IEC 60068-2-7 |
| Associated fuse rating | 5 A gG for signalling circuit 5 A BS for signalling circuit |
| Thermal overload class | Class 5...30 |
| Electromagnetic compatibility | Surge withstand 2 kV common mode IEC 61000-4-5 Resistance to electrostatic discharge 8 kV IEC 61000-4-2 Immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3 Immunity to fast transients 2 kV IEC 61000-4-4 |
| Ambient air temperature for storage | -67...176 °F (-55...80 °C) |
| Thermal protection adjustment range | 0.4...2 A |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) IEC 60255-8 |
MPN
LR9D02
