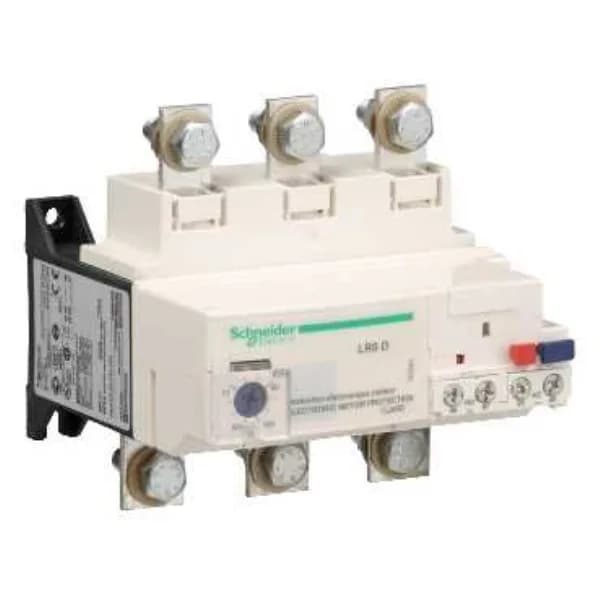

Schneider TeSys LR9D5567 thermal overload relay, 3-pole, 24 V AC, 100 kA DC breaking capacity, 1 NO + 1 NC auxiliary contacts, IP20, UL/CSA/CCC/UKCA certified.
| Parameter | Value |
|---|---|
| Control type | Red push-button stop Blue push-button reset |
| Network type | AC |
| Product or component type | Electronic thermal overload relay |
| Climatic withstand | IACS E10 |
| Maximum voltage drop | <2.5 V closed state |
| Supply voltage limits | 17...32 V |
| Supply voltage | 24 V DC |
| Voltage | Power circuit 1000 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz power circuit IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ith] conventional free air thermal current | 5 A signalling circuit |
| Network frequency | 50-60 Hz |
| Parameter | Value |
|---|---|
| Phase failure sensitivity | Tripping in 4 s +/- 20 % IEC 60947-4-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | Under contactor Rail |
| Connections - terminals | Power circuit bars Control circuit screw clamp terminals 1 0.0008...0.002 in² (0.5...1.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.0008...0.002 in² (0.5...1.5 mm²) flexible without cable end Alarm circuit screw clamp terminals 1 0.0008...0.002 in² (0.5...1.5 mm²) flexible without cable end |
| Operating altitude | <= 6561.68 ft (2000 m) without derating |
| Depth | 4.9 in (125 mm) |
| Width | 4.5 in (115 mm) |
| Height | 4.6 in (118 mm) |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 |
| Range | TeSys |
| Category | US10I1222347 |
| Device short name | LR9D |
| Relay application | Motor protection |
| Tightening torque | Alarm circuit 3.98 lbf.in (0.45 N.m) screw clamp terminals Power circuit 159.3 lbf.in (18 N.m) bars M8 Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals |
| Tripping threshold | 1.05 +/- 0.06 In alarm IEC 60947-4-1 1.12 +/- 0.06 In de-energisation IEC 60947-4-1 |
| Dielectric strength | 1.89 kV 50 Hz IEC 60947-1 |
| Signalling function | Alarm |
| Mechanical robustness | Vibrations2 Gn, 5...300 Hz IEC 60068-2-6 Shocks13 Gn for 11 ms IEC 60068-2-7 |
| Associated fuse rating | 4 A gG for signalling circuit 4 A BS for signalling circuit |
| Thermal overload class | Class 20 IEC 60947-4-1 |
| Switching capacity in | 0...150 mA |
| Temperature compensation | -4...140 °F (-20...60 °C) |
| Auxiliary contact composition | 1 NO + 1 NC |
| Ambient air temperature for storage | -76...158 °F (-60...70 °C) |
| Thermal protection adjustment range | 60...100 A |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) without derating IEC 60947-4-1 |
The LR9D5567 is a Schneider TeSys Deca thermal overload relay, 3-pole, rated 24 V AC at 60 Hz, with a DC breaking capacity of 100 kA. It provides motor protection with alarm and de-energisation thresholds per IEC 60947-4-1, and carries UL, CSA, CCC, and UKCA certifications.
The LR9D5567 is an active product in Schneider's current catalog. Compliance documentation includes UL, CSA, CCC, UKCA, and California Proposition 65 declarations. For firm lead time and pricing, submit an RFQ.
