Schneider Electric LR9G115
MPNLR9G115
Active

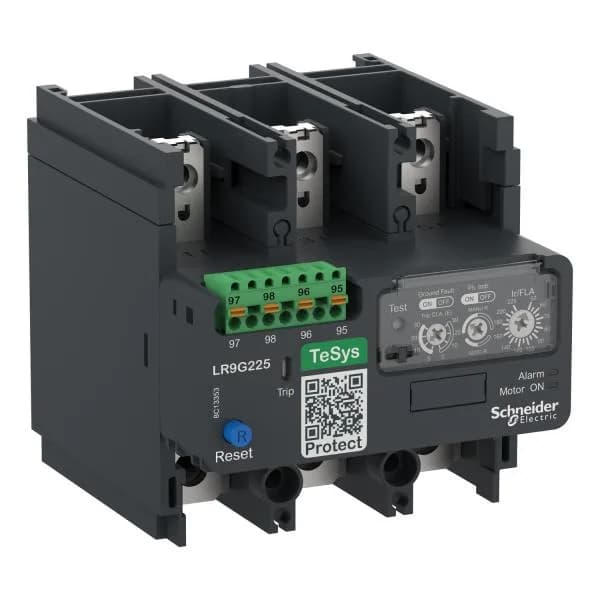

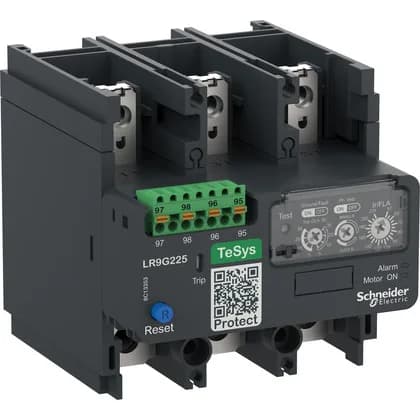

ELECTRONIC THERMAL OVERLOAD RELAY TESYS GIGA 28-115 A CLASS 5E-30E PUSH-IN CONTROL CONNECTION|ELECTRONIC THERMAL OVERLOAD RELAY TESYS GIGA 28-115 A CLASS 5E-30E PUSH-IN CONTROL CONNECTION
$156.21Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Protection type | Ground fault protection 0...1 s - alarm circuit IEC 60947-4-1 Ground fault protection 0...1 s - alarm circuit UL 60947-4-1 Phase loss 0...4 s - alarm circuit Phase imbalance 0...5 s - alarm circuit IEC 60947-4-1 Phase imbalance 0...5 s - alarm circuit UL 60947-4-1 |
| Product or component type | Electronic thermal overload relay |
| Contacts type and composition | 1 NO + 1 NC |
| Surge withstand | 4 kV |
| Coil voltage | 24...500 V AC 50/60 Hz 24...250 V DC |
| [Ue] rated operational voltage | 1000 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 5 A |
| Network frequency | 30...60 Hz 100 Hz |
| IP degree of protection | IP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106 |
| Mounting support | Direct on contactor Plate |
All specifications
| Parameter | Value |
|---|---|
| Connections - terminals | Power circuit: bar - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²) Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end |
| Color | Dark grey |
| Depth | 5.0 in (126 mm) |
| Width | 4.1 in (105 mm) |
| Height | 4.2 in (107 mm) |
| Mechanical durability | 7000 cycles |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ UL 60335-1 |
| Range | TeSys |
| Reset | Automatic reset Manual |
| Category | US10I1222330 |
| Local signalling | LED Trip indicator |
| Device short name | LR9G |
| Relay application | Motor protection |
| Tightening torque | 18 N.m |
| Tripping threshold | 1.125 +/- 0.07 In IEC 60947-4-1 |
| Overvoltage category | III |
| Protective treatment | TH |
| Mechanical robustness | Vibrations 5...300 Hz 6 gn contactor open Shocks 15 gn 11 ms contactor closed |
| Thermal overload class | Class 5E...30E IEC 60947-4-1 |
| Adjustment of dial setting | -13...140 °F (-25...60 °C) |
| Electromagnetic compatibility | EMC immunity conforming to IEC 60947-4-1 Emission tests criteria A conforming to IEC 60947-4-1 Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to SEMI F47 |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Thermal protection adjustment range | 28...115 A |
| Ambient air temperature for operation | -13...140 °F (-25...60 °C) |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) at Uc |
