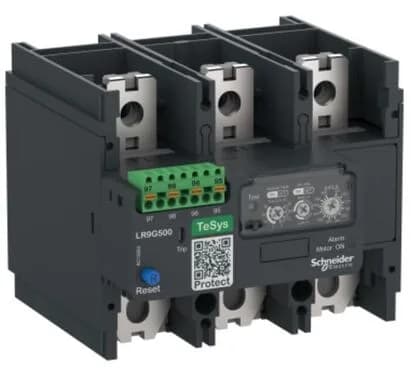

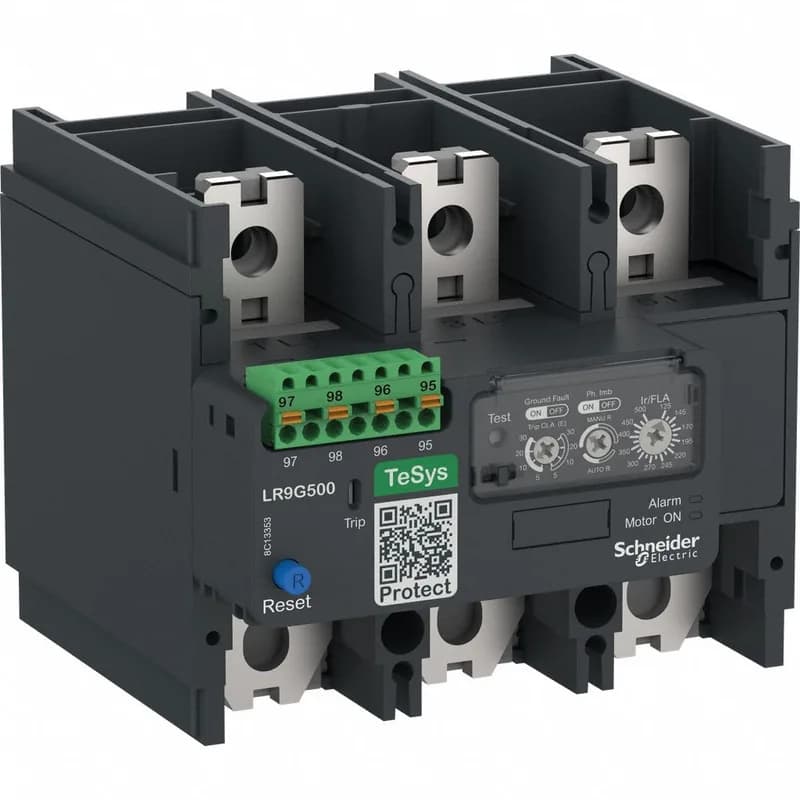

Schneider Electric LR9G500

LR9G500 Electronic Overload Relay 125-500 A – Schneider

MPNLR9G500
Active

ELECTRONIC THERMAL OVERLOAD RELAY TESYS GIGA 125-500 A CLASS 5E-|ELECTRONIC THERMAL OVERLOAD RELAY TESYS GIGA 125-500 A CLASS 5E-30E PUSH-IN CONTROL CONNECTION

$250.19Ref. price · indicative, final on quote
Schneider Electric LR9G500 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LR9G500 key specifications
ParameterValue
Network typeAC
Protection typeGround fault protection 0...1 s - alarm circuit IEC 60947-4-1 Ground fault protection 0...1 s - alarm circuit UL 60947-4-1 Phase loss 0...4 s - alarm circuit Phase imbalance 0...5 s - alarm circuit IEC 60947-4-1 Phase imbalance 0...5 s - alarm circuit UL 60947-4-1
Product or component typeElectronic thermal overload relay
Contacts type and composition1 NO + 1 NC
Surge withstand4 kV
Coil voltage24...500 V AC 50/60 Hz 24...250 V DC
[Ue] rated operational voltage1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kV
[Ith] conventional free air thermal current5 A
Network frequency30...60 Hz 100 Hz
IP degree of protectionIP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Mounting supportDirect on contactor Plate

All specifications

LR9G500 additional specifications
ParameterValue
Connections - terminalsPower circuit: bar - busbar cross section: 32 x 10 mm Power circuit: lugs-ring terminals 1 0.4 in² (240 mm²) Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end
ColorDark grey
Depth5.5 in (140 mm)
Width5.5 in (140 mm)
Height4.5 in (114 mm)
Mechanical durability7000 cycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ UL 60335-1
RangeTeSys
ResetAutomatic reset Manual
CategoryUS10I1222330
Local signallingLED Trip indicator
Device short nameLR9G
Relay applicationMotor protection
Tightening torque35 N.m
Tripping threshold1.125 +/- 0.07 In IEC 60947-4-1
Overvoltage categoryIII
Protective treatmentTH
Mechanical robustnessVibrations 5...300 Hz 6 gn contactor open Shocks 15 gn 11 ms contactor closed
Thermal overload classClass 5E...30E IEC 60947-4-1
Adjustment of dial setting-13...140 °F (-25...60 °C)
Electromagnetic compatibilityEMC immunity conforming to IEC 60947-4-1 Emission tests criteria A conforming to IEC 60947-4-1 Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to SEMI F47
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Thermal protection adjustment range125...500 A
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) at Uc

Product details

Trip Class Selection for Motor Start Profiles

Matching the trip class to the motor start profile – 5E for fast starts, 30E for high-inertia loads – is the primary selection decision when specifying the Schneider LR9G500 electronic overload relay for 125-500 A circuits.

Direct Mount on TeSys Giga

The LR9G500 mounts directly onto the TeSys Giga contactor, saving panel space with its 5.51 in depth and IP20 protection; auxiliary contacts 1NO/1NC are built in.

Active Lifecycle and Availability

As an active product with strong aftermarket demand, the LR9G500 is readily available through distribution channels; plan for standard lead times on this high-turnover part.

MPN
LR9G500
