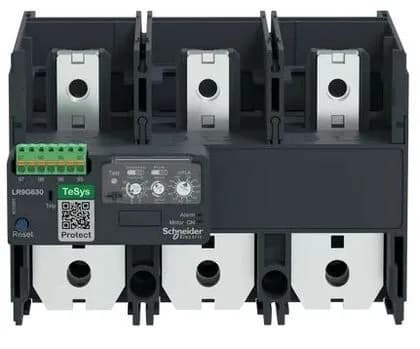

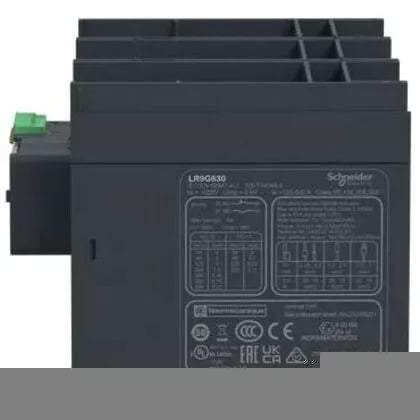

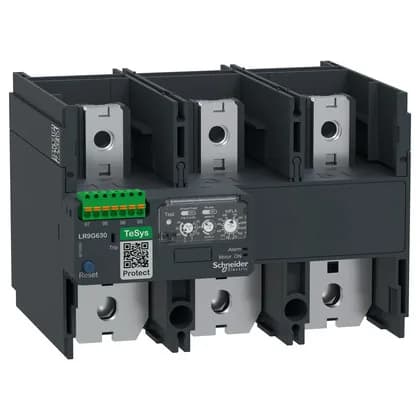

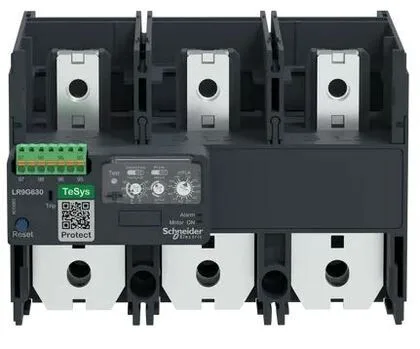

Schneider Electric LR9G630

LR9G630 TeSys Giga Overload Relay 160–630 A Class 5E/30E

MPNLR9G630
Active

THERMAL OVERLOAD RELAY ELECTRONIC TESYS GIGA 160A TO 630A CLASS 5|THERMAL OVERLOAD RELAY ELECTRONIC TESYS GIGA 160A TO 630A CLASS 5E TO 30E PUSH-IN CONTROL CONNECTION

Schneider Electric LR9G630 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LR9G630 key specifications
ParameterValue
Network typeAC
Protection typeGround fault protection - tripping time adjustment: 0...1 s - for alarm circuit conforming to IEC 60947-4-1 Ground fault protection - tripping time adjustment: 0...1 s - for alarm circuit conforming to UL 60947-4-1 Phase loss - tripping time adjustment: 0...4 s - for alarm circuit Phase imbalance - tripping time adjustment: 0...5 s - for alarm circuit conforming to IEC 60947-4-1 Phase imbalance - tripping time adjustment: 0...5 s - for alarm circuit conforming to UL 60947-4-1
Product or component typeElectronic thermal overload relay
Contacts type and composition1 NO + 1 NC
Surge withstand4 kV
Coil voltage24...500 V AC 50/60 Hz 24...250 V DC
[Ue] rated operational voltage1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kV
[Ith] conventional free air thermal current5 A
Network frequency30...60 Hz 100 Hz
IP degree of protectionIP2X front face with shrouds conforming to IEC 60529 IP2X front face with shrouds conforming to VDE 0106
Mounting supportDirect on contactor Plate

All specifications

LR9G630 additional specifications
ParameterValue
Connections - terminalsPower circuit: bar - busbar cross section: 50 x 10 mm Power circuit: lugs-ring terminals 1 300 mm² Control circuit: push-in 1 0.2...2.5 mm² - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.25...2.5 mm² - cable stiffness: flexible with cable end Control circuit: push-in 2 0.5...1.0 mm² with cable end
Depth186 mm
Width211 mm
ColorDark grey
Height148 mm
Product weight2.9 kg
Mechanical durability7000 cycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ UL 60335-1
RangeTeSys
ResetAutomatic reset Manual
Local signallingLED Trip indicator
Device short nameLR9G
Relay applicationMotor protection
Tightening torque58 N.m
Tripping threshold1.125 +/- 0.07 In conforming to IEC 60947-4-1
Overvoltage categoryIII
Protective treatmentTH
Mechanical robustnessVibrations 5...300 Hz 6 gn contactor open Shocks 15 gn 11 ms contactor closed
Thermal overload classClass 5E...30E conforming to IEC 60947-4-1
Adjustment of dial setting-25...60 °C
Electromagnetic compatibilityEMC immunity conforming to IEC 60947-4-1 Emission tests criteria A conforming to IEC 60947-4-1 Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to SEMI F47
Ambient air temperature for storage-60...80 °C
Thermal protection adjustment range160...630 A
Ambient air temperature for operation-25...60 °C
Permissible ambient air temperature around the device-40...60 °C at Uc

Product details

Current range and trip class selection

For motor circuits pulling 160 to 630 A, the LR9G630 electronic overload relay from Schneider's TeSys Giga line offers independent trip class selection — Class 5E for fast protection or Class 30E for high-inertia loads. Trip curves are unaffected by ambient temperature because sensing is electronic, not bimetallic.

Electronic sensing with phase loss detection

Electronic overload release on the LR9G630 produces repeatable trip times and is inherently immune to heater aging — a real advantage on high-cycle applications. Phase loss sensitivity is built in; it will trip within seconds if one phase drops, protecting the motor from single-phasing damage.

Reset options and enclosure rating

Choose automatic or manual reset depending on process restart needs — no additional wiring for mode change, just a switch on the front. IP20 protected housing allows use inside standard panels; screw terminals are provided for 2 aux contacts (N.O./N.C.).

The LR9G630 mounts directly to the contactor, saving panel space and eliminating interwiring. Overall dimensions: 8.31 in width, 5.83 in height, 7.32 in depth.
