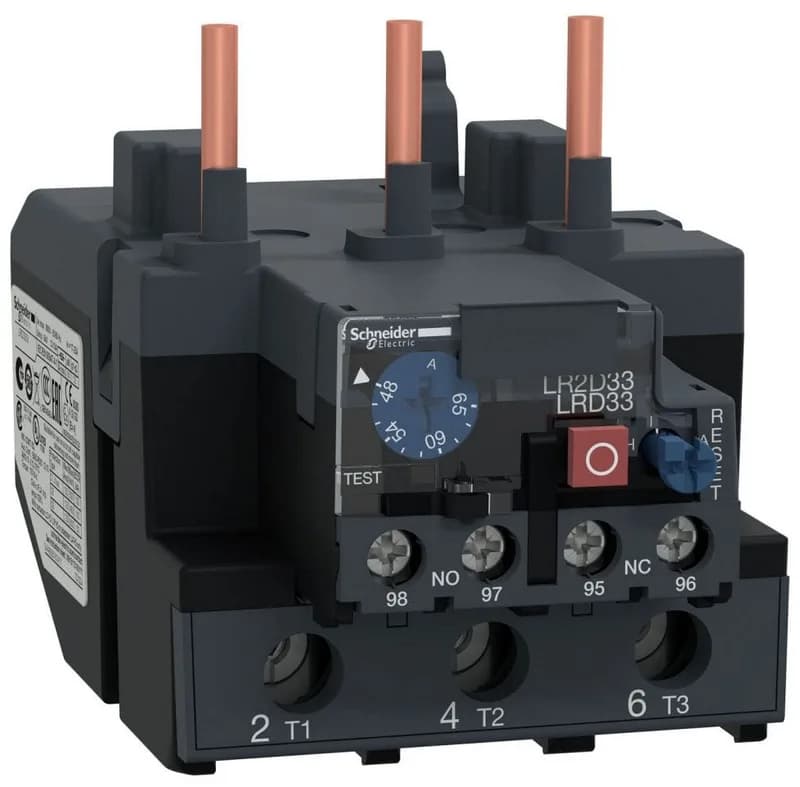

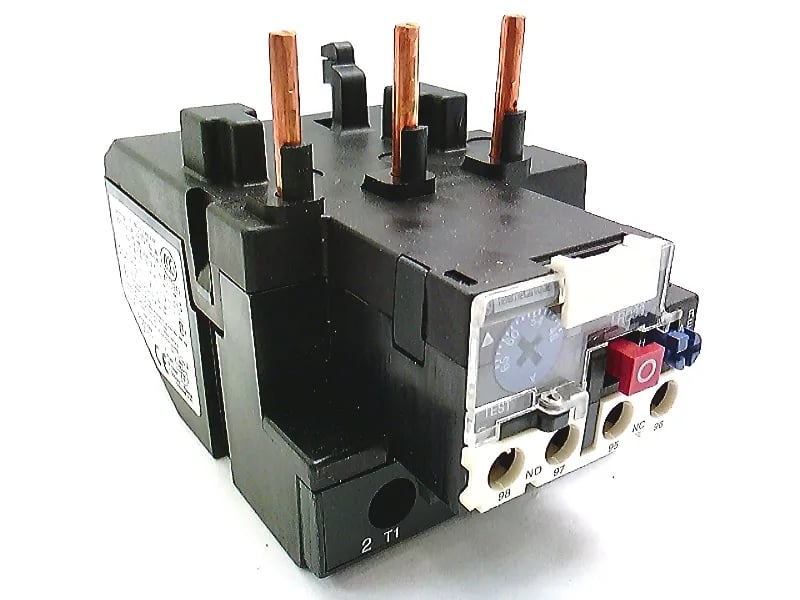

Schneider TeSys LRD3359 Bimetallic Overload Relay, 48-65 A

MPNLRD3359
Active

Schneider Electric TeSys Deca LRD3359 bimetallic differential thermal overload relay, 48–65 A adjustment, Class 10A, IP20.

$52.46Ref. price · indicative, final on quote
Schneider Electric LRD3359 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LRD3359 key specifications
ParameterValue
Control typeRed push-button stop Blue push-button reset
Network typeAC DC
Product or component typeDifferential thermal overload relay
Climatic withstandIACS E10
VoltagePower circuit 1000 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL
[Ue] rated operational voltage1000 V AC 0...400 Hz power circuit IEC 60947-4-1
[Uimp] rated impulse withstand voltage6 kV IEC 60947-1
Permissible current0.72 A 500 V AC-15 signalling circuit 0.06 A 440 V DC-13 signalling circuit
[Ith] conventional free air thermal current5 A signalling circuit
Network frequency0...400 Hz
Phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0
IP degree of protectionIP20 conforming to IEC 60529

All specifications

LRD3359 additional specifications
ParameterValue
Mounting supportPlate, with specific accessories Rail, with specific accessories Under contactor
Connections - terminalsPower circuit screw clamp terminals 1 0.006...0.05 in² (4...35 mm²) flexible without cable end Power circuit screw clamp terminals 1 0.006...0.05 in² (4...35 mm²) flexible with cable end Power circuit screw clamp terminals 1 0.006...0.05 in² (4...35 mm²) solid without cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) solid without cable end
Depth4.5 in (115 mm)
Width2.8 in (70 mm)
Height3.2 in (81 mm)
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495
RangeTeSys
CategoryUS10I1222347
Flame retardanceV1 conforming to UL 94
Device short nameLRD
Relay applicationMotor protection
Tightening torqueControl circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 79.7 lbf.in (9 N.m) screw clamp terminals
Tripping threshold1.14 +/- 0.06 Ir IEC 60947-4-1
Dielectric strength2.2 kV 50 Hz IEC 60947-1
Mechanical robustnessVibrations6 Gn IEC 60068-2-6 Shocks15 Gn for 11 ms IEC 60068-2-7
Associated fuse rating4 A gG for signalling circuit 4 A BS for signalling circuit
Thermal overload classClass 10A IEC 60947-4-1
Temperature compensation-4...140 °F (-20...60 °C)
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...158 °F (-60...70 °C)
Thermal protection adjustment range48...65 A
Ambient air temperature for operation-4...140 °F (-20...60 °C) without derating IEC 60947-4-1

Product details

The LRD3359 is a differential thermal overload relay with a 48–65 A adjustment range and Class 10A trip class. The relay includes phase failure sensitivity: if one phase drops to zero, the relay trips at 130 % of the current setting on the remaining two phases, preventing single-phasing damage.

No direct sibling within the same adjustment range is listed for comparison; the LRD3359 occupies the 48–65 A slot in the TeSys Deca family. For lower or higher currents, adjacent order codes exist but fall outside this relay's coverage.

Frequently asked questions

What is LRD3359's adjustment range?

The thermal protection adjustment range is 48 to 65 A.

What compliance standards does the LRD3359 meet?

It is certified to EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, and EN 50495.

What is the depth of the LRD3359?

The depth is 4.5 inches (115 mm).

What is the range of the LRD3359?

It belongs to the TeSys and TeSys Deca range.

MPN
LRD3359
