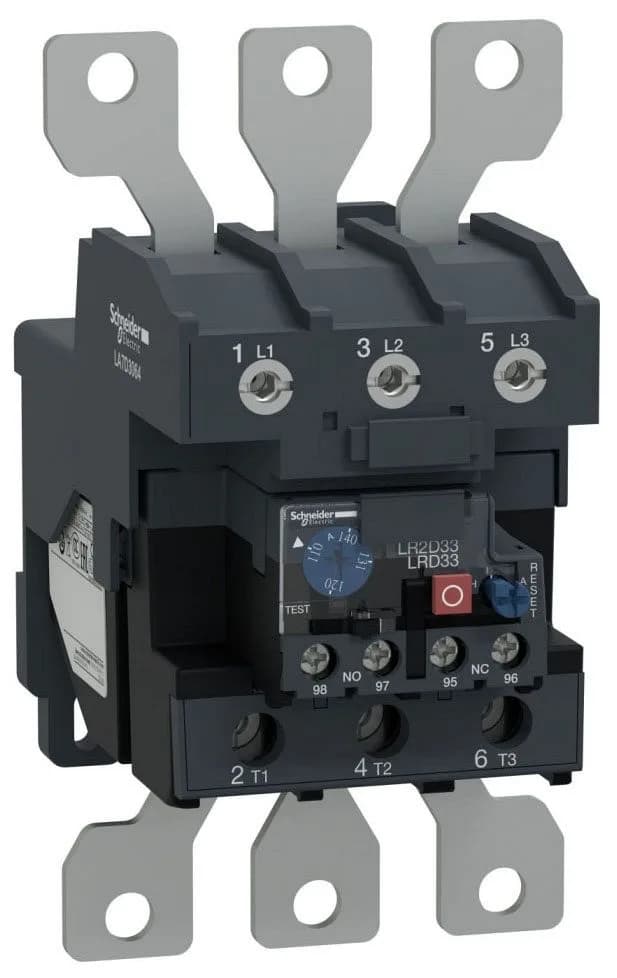

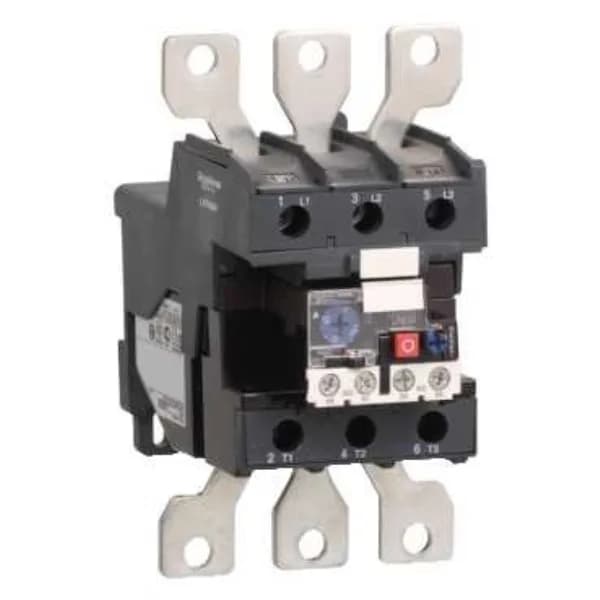

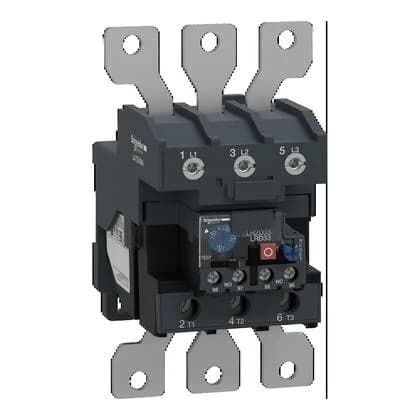

Schneider Electric LRD33696

Schneider LRD33696 TeSys Deca Overload Relay, 140 A, Class 10

MPNLRD33696
Obsolete

Schneider TeSys Deca LRD33696 thermal overload relay, 3-pole, 140 A motor FLA, Class 10, bimetallic, 1000 V, IP20, screw clamp terminals, plate/rail mount, 1 NO + 1 NC aux contacts.

$93.98Ref. price · indicative, final on quote
Schneider Electric LRD33696 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LRD33696 key specifications
ParameterValue
Control typeRed push-button stop Blue push-button reset
Network typeAC DC
Product or component typeDifferential thermal overload relay
Climatic withstandIACS E10
VoltagePower circuit 750 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL
[Ue] rated operational voltage1000 V AC 0...400 Hz power circuit IEC 60947-4-1
[Uimp] rated impulse withstand voltage6 kV
Permissible current0.72 A 500 V AC-15 signalling circuit 0.06 A 440 V DC-13 signalling circuit
[Ith] conventional free air thermal current5 A signalling circuit
Network frequency0...400 Hz
Phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0
IP degree of protectionIP20 conforming to IEC 60529

All specifications

LRD33696 additional specifications
ParameterValue
Mounting supportPlate Rail
Connections - terminalsPower circuit screw clamp terminals 1 0.006...0.05 in² (4...35 mm²) flexible without cable end Power circuit screw clamp terminals 1 0.006...0.05 in² (4...35 mm²) flexible with cable end Power circuit screw clamp terminals 1 0.006...0.05 in² (4...35 mm²) solid without cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) solid without cable end
Height4.8 in (123 mm)
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495
RangeTeSys
CategoryUS10I1222347
Flame retardanceV1 conforming to UL 94
Device short nameLRD
Relay applicationMotor protection
Tightening torqueControl circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Power circuit 79.7 lbf.in (9 N.m) screw clamp terminals
Tripping threshold1.14 +/- 0.06 Ir IEC 60947-4-1
Dielectric strength2.2 kV 50 Hz IEC 60947-1
Mechanical robustnessVibrations6 Gn IEC 60068-2-6 Shocks15 Gn for 11 ms IEC 60068-2-7
Associated fuse rating4 A gG for signalling circuit 4 A BS for signalling circuit
Thermal overload classClass 10A IEC 60947-4-1
Temperature compensation-4...140 °F (-20...60 °C)
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...158 °F (-60...70 °C)
Thermal protection adjustment range110...140 A
Ambient air temperature for operation-4...140 °F (-20...60 °C) without derating IEC 60947-4-1

Product details

Overview

The LRD33696 is a Schneider TeSys Deca thermal overload relay, order code LRD33696, rated for 3-pole motor protection with a full-load current setting of 140 A and a Class 10 trip curve. It is a bimetallic device designed for direct mounting to the LC1D150 contactor or standalone plate/rail installation.

The LRD33696 uses a bimetallic strip that deflects under heat from the motor current, tripping the relay when the current exceeds the set threshold for a duration corresponding to Class 10. The tripping threshold is calibrated to 1.14 ± 0.06 times the set current Ir per IEC 60947-4-1. Reset is selectable between automatic and manual via the blue push-button on the front face. A red push-button serves as a manual stop for the connected contactor.

Applications

The TeSys Deca range is common in panel building for OEM machinery, HVAC systems, and water treatment plants where reliable thermal overload protection is required under IEC and UL standards.

Within the TeSys Deca family, the LRD33696 sits at the high-current end, covering the 140 A setting point that mates directly with the LC1D150 contactor. It is specified by panel builders and OEMs who need a single-source thermal overload with global certifications for export machinery.

The LRD33696 carries certifications including IEC, UL, CSA, CCC, EAC, ATEX, INERIS, and UKCA, and complies with California Proposition 65. It is listed to standards EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, and EN 50495. The warranty period is 18 months.

Mounting options include direct plate mounting or DIN-rail mounting via an adapter. The power circuit terminals use screw clamp connections requiring a torque of 79.7 lbf.in (9 N·m); the control circuit terminals require 15.05 lbf.in (1.7 N·m). The enclosure is rated IP2X (finger-safe) and the device itself is IP20 for in-cabinet use. The relay is 121.92 mm tall and accepts screw clamp terminals for both power and control wiring. The associated fuse rating for the signalling circuit is 4 A gG or 4 A BS type.
